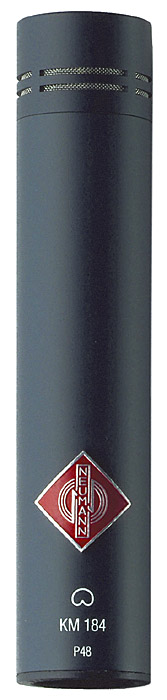

Neumann  Cardioid Condenser Miniature Microphone With Accessories, Black Image 1
Neumann  Cardioid Condenser Miniature Microphone With Accessories, Black
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Because of its optimized mechanical construction and conscious omission of modularity, which is unnecessary in many cases, Neumann's "Series 180" KM 184 is predestined for economy-minded production and home recording studios. The KM 184 cardioid microphone has become a standard within the global studio community. The KM 184's slender shape and the transmission characteristics described below make it especially suitable for a wide range of tasks in the radio and television sector. Experienced users often describe the sound of our small diaphragm microphone as fresh and vivid. This is due, among other factors, to a slight treble lift around 9kHz. The KM 184 is an experienced all-rounder, a mic for all seasons. It captures virtually any instrument with amazing complexity and depth of sound.

Includes

  • SG 21 BK stand mount
  • WNS 100 windscreen

Features

  • Versatile, small-membrane mic primarily for instrument recording
  • Slight treble lift for vivid, fresh sound
  • Precise cardioid directionality with excellent rejection of rearward sound
  • Uncolored reproduction of neighboring sound sources
  • Tight production tolerances

Specifications

  • Acoustical operating principle: Pressure gradient transducer
  • Directional pattern: cardioid
  • Frequency range: 20 Hz - 20 kHz
  • Sensitivity at 1 kHz into 1 kOhm: 15 mV/Pa
  • Rated impedance: 50 Ohms
  • Rated load impedance: 1000 Ohms
  • Equivalent noise level, CCIR*: 22 dB
  • Equivalent noise level, A-weighted*: 13 dB-A
  • S/N ratio, CCIR* (rel. 94 dB SPL): 72 dB
  • S/N ratio, A-weighted* (rel. 94 dB SPL): 81 dB
  • Maximum SPL for THD 0.5%**: 138 dB
  • Maximum output voltage: 10 dBu
  • Supply voltage (P48, IEC 61938): 48 V ± 4 V
  • Current consumption (P48, IEC 61938): 3.2 mA
  • Matching connectors: 3-pin XLR-F
  • Weight: approx. 80 g
  • Diameter: 22 mm
  • Length: 107 mm

Notes

* According to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

**Measured as equivalent el. input signal
