Switchcraft VPP26K3HD75T
Video Patchbay, HD, 26 Jacks, Terminated


Our Price: $801.26
List Price: $1,288.46
You save 38%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

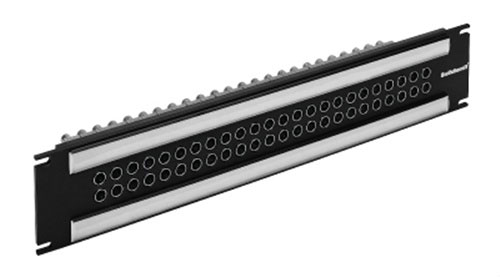

Video Patchbay HD, 26 jacks, 3.5", terminated.

VPP Series patchbays offer a wide variety of options for video patching. The HD Series meets SMPTE 292M specifications for high definition video signaling, covering a bandwidth range from DC to 3.0GHz.


  • Black thermoplastic modules insulate jacks from chassis
  • Jacks feature rugged heavy duty housings

Video Jack Specifications:

Rated Bandwidth: 3.0 GHz (HD)
Characteristic Impedance: 75 ohms
Contact Resistance: Less than 20 milliohms
Termination Resistance: 75 ohm, ±1%
Center Conductor: Accepts .090 pin diameter

Mechanical Shock: Per MIL-STD-202, Method 213,
Test condition I
Vibration: Per MIL-STD-202, Method 201
Life Cycle: 30,000

Housing: Zinc alloy, nickel plated
Center Contacts: Copper alloy, gold plated
Switching Springs: Copper alloy, gold plated
Grounding Contacts: Copper alloy, gold plated
Insulators: Thermoplastic, UL 94V-0 rated

Operating Temperature: – 40ºC to 65ºC
Storage Temperature: – 55ºC to 85ºC
Thermal Shock: Per MIL-STD-202, Method 107
Moisture and Humidity: Per MIL-STD-202, Method 106
