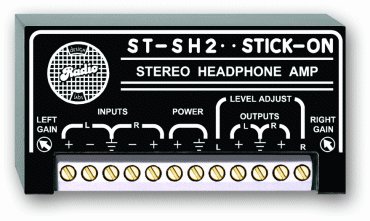

Radio Design Labs ST-SH2
Stereo Headphone Amplifier

OUR PART #  STSH2

Our Price: $129.73
List Price: $173.53
You save 25%! (Low Price Guarantee)
In Stock

Recommended Accessories

Radio Design Labs' ST-SH2 is used in applications requiring headphones of any impedance to be driven from consumer or professional audio sources. For fixed level installations not requiring user volume control, the ST-SH2 is wired to the audio source and to a headphone jack. Frequently, it is desirable to mount a volume knob by the headphone jack. The LEVEL ADJUST terminals (L) and (R) may be wired to the respective wipers of a stereo 10 kO potentiometer to provide volume adjustment. It is recommended that the ST-SH2 be located less than 39" (1 m) from the jack and volume control.

The exceptional low noise (better than 100 dB below operating level), low distortion, audio clarity and excellent crosstalk performance makes this module ideally suited to a wide variety of demanding audio applications. Use this module in conjunction with other RDL® modules as part of a high quality, flexible audio/ video system.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Features:

  • Stereophonic Headphone Amplifier
  • Provision for External Stereo Level Control
  • Balanced or Unbalanced Input
  • Bridge a Line and Feed Headsets
  • Amplifier To Drive High or Low Impedance Headsets

Specifications:

  • Inputs (2): 10 kO balanced or unbalanced, bridging
  • Input Signal: -20 dBu (-22 dBV) to +6 dBu (for normal output level: +4 dBu, 100 ù) -10 dBu to +16 dBu (for 250 mW, 8 O output)
  • Output Load Impedance: 8 O to 5 kO (drives low or high impedance headphones)
  • Output Signal (normal rated): +4 dBu into 100 O
  • Output Signal (maximum): 250 mW into 8 O, 20 Vp-p into 2 kO
  • THD+N: < 0.005% (0.0015% typical @ 1 kHz)
  • Frequency Response: 20 Hz to 40 kHz (+/- 0.25 dB)
  • Noise: < -100 dB below normal operating level
  • Total Dynamic Range: > 115 dB
  • Gain: Adjustable from -2 to 24 dB
  • CMRR: > 50 dB at 100 Hz
  • Crosstalk: < -65 dB (10 Hz to 20 kHz); < -80 dB @ 1 kHz
  • Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 175 mA
