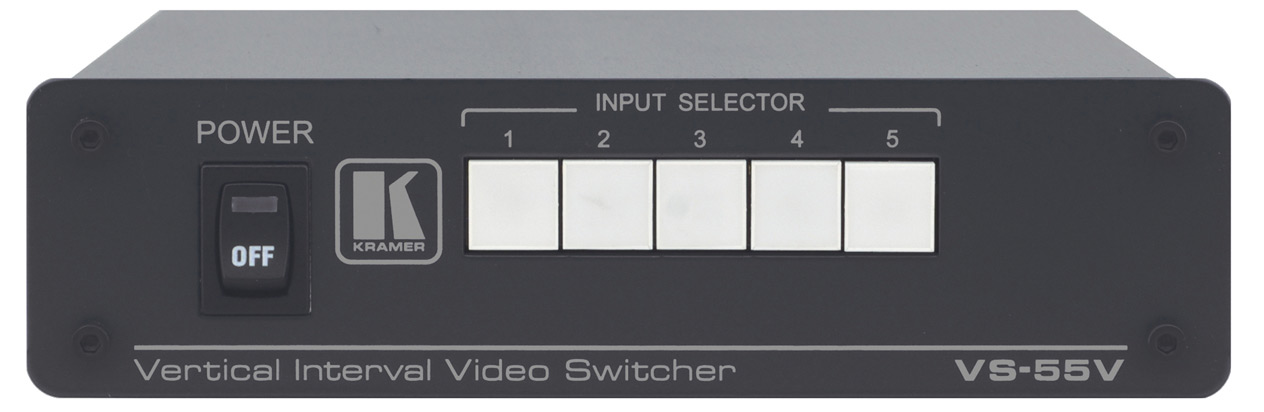

Kramer VS-55V
5x1 BNC Composite Video Switcher

OUR PART #:  VS55V

The VS-55V is a high performance switcher for composite video signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
Learn More
Our Price: $408.00
List Price: $510.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VS-55V
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VS-55V is a high performance switcher for composite video signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.

Features:

  • Bandwidth  - 150MHz (-3dB).
  • Vertical Interval Switching.
  • Control  - Front panel and contact closure (via link connector).
  • Desktop Size  - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter.

Specifications:

  • Inputs: 5 composite or 1 component video 1Vpp/75? on BNC connectors.
  • Outputs: 1 composite video or single component channel, 1Vpp/75? on a BNC connector; EXT connector (RCA) for switcher extension.
  • Maximum Video Output: 1.6Vpp/75?.
  • Video Bandwidth (-3DB): 150MHz.
  • Diff. Gain: 0.88%.
  • Diff. Phase: 0.35Deg.
  • K-Factor: <0.05%.
  • Video S/N Ratio: Better than 73dB.
  • Switching: During vertical interval of source 1.
  • Non-Linearity: 0.3%.
  • Crosstalk: <-45dB @5MHz.
  • Control: 5 front panel buttons, contact closure via the LINK connector (9-pin D-sub).
  • Power Consumption: 12V DC, 100mA.
  • Dimensions: 6.5 x 4.7 x 1.8 in (16.5 x 12 x 4.5 cm) W, D, H.
  • Weight: 1.46 lbs (0.66 kg) approx.
  • Accessories: Power supply.
  • Options: RK-1 19" rack adapter.
