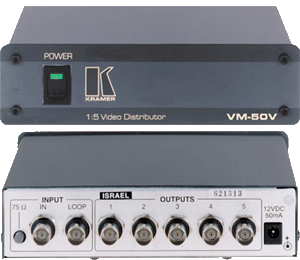

Kramer VM50V
1x5 composite BNC Distribution Amplifier

OUR PART #:  VM50V

The Kramer VM-50V is a high performance distribution amplifier for composite or SDI signals.
Learn More
Our Price: $236.00
List Price: $295.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM50V
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer VM-50V is a high performance distribution amplifier for composite or SDI signals. It takes one input, provides correct buffering and isolation, and distributes the signal to five identical outputs.

High Bandwidth - 480MHz (- 3dB).  Looping Inputs.  Selectable Input Signal Termination.  Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-50RN adapter.

INPUT:   1 video, looping, 1Vpp/75ohm; on BNC connectors with a termination switch.   OUTPUTS:   5 video, 1Vpp/75ohm; on BNC connectors.   MAX. VIDEO OUTPUT:   2 Vpp.   VIDEO BANDWIDTH (-3dB):   480MHz.   DIFF. GAIN:   0.05%.   DIFF. PHASE:   0.12 Deg.   K-FACTOR:   0.05%.   S/N RATIO:   73dB.   CONTROL:   75Ω termination switch.   COUPLING:   AC.   POWER SOURCE:   12 VDC, 40mA.   DIMENSIONS:   16.5cm x 12cm x 4.5cm (6.5” x 4.7” x 2.8”, W,D,H).   WEIGHT:   0.62 kg. (1.4 lbs.) approx.   ACCESSORIES:   12VDC power supply, brackets for stacking multiple units.   OPTIONS:   RK-50RN rack adapter.
