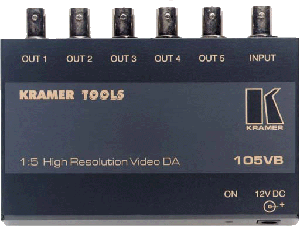

Kramer 105VB 1:5 Composite Video Distribution Amplifier

The Kramer 105VB is a high performance distribution amplifier for composite video signals. It takes one input, provides correct buffering and isolation and distributes the signal to five identical outputs.

Specifications

• Bandwidth - 280MHz (- 3dB). BNC Connectors (105V has RCAs). Level (Gain) Control. Compact Size - Part of the Kramer TOOLS™ family of compact, high quality and cost effective solutions.
• INPUT: 1 video, 1Vpp/75O on a BNC connector.
• OUTPUTS: 5 video, 1Vpp/75O on BNC connectors.
• MAX. VIDEO OUTPUT: 2Vpp.
• VIDEO BANDWIDTH (- 3dB): 280MHz.
• DIFF. GAIN: 0.1%.
• DIFF. PHASE: 0.1 Deg.
• K-FACTOR: < 0.05%.
• S/N RATIO: 80dB.
• CONTROL: Up to + 6dB (level).
• COUPLING: AC.
• POWER SOURCE: 12VDC, 100mA.
• DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98", W, D, H).
• WEIGHT: 0.3kg. (0.67lbs.) approx.
• ACCESSORIES: Power supply, mounting bracket.
• OPTIONS: Model VA-50P power supply with six 12VDC outlets. RK-T1, RK-T3 19" rack adapters.
