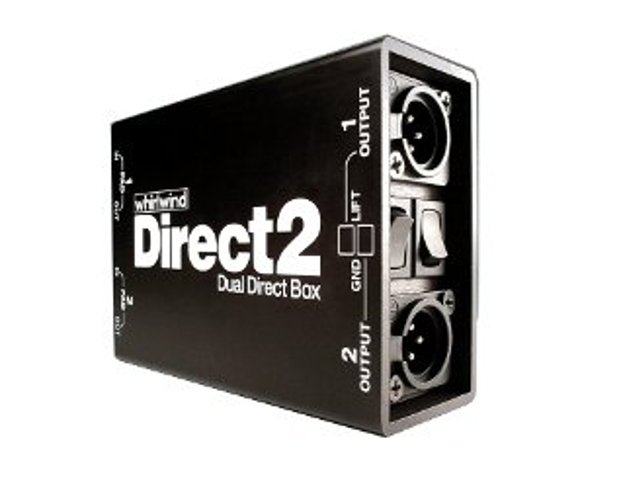

Whirlwind DIRECTOR-II
Dual 2-Channel Direct Box

OUR PART #  DIRECTOR-II

Our Price: $125.00
(Low Price Guarantee)
In Stock

The DIRECT 2 combines features found on two of Whirlwind's DIRECTOR®  direct boxes in one unit. Perfect for converting unbalanced signals from stereo keyboards, acoustic guitar preamps, CD and tape players, computer sound cards, etc. The input and output grounds of each section are isolated from each other. This allows the DIRECT2 to be used as if it were two completely separate DIs without fear of creating ground loop interaction.

Features:

  • 1/4" parallel wired in/out jacks
  • Ground Lift switch to help eliminate hum and buzz
  • -20dB pad switch for connection to "hot" input signals
  • Uses Whirlwind's TRHL-M transformer with metal shield that's riveted, not glued, to the chassis

Specifications:

  • Input Impedance: 2 X 20 kOhms
  • Output Impedance: 2 X 150 Ohms
  • Frequency Response: 20Hz-20kHz ±1dB
  • Level Change (input to output): -20dB (pad out), -40dB (pad in)

Whirlwind DIRECTOR-II
Dual 2-Channel Direct Box

OUR PART #  DIRECTOR-II

Product Information:

The DIRECT 2 combines features found on two of Whirlwind's DIRECTOR®  direct boxes in one unit. Perfect for converting unbalanced signals from stereo keyboards, acoustic guitar preamps, CD and tape players, computer sound cards, etc. The input and output grounds of each section are isolated from each other. This allows the DIRECT2 to be used as if it were two completely separate DIs without fear of creating ground loop interaction.

Features:

  • 1/4" parallel wired in/out jacks
  • Ground Lift switch to help eliminate hum and buzz
  • -20dB pad switch for connection to "hot" input signals
  • Uses Whirlwind's TRHL-M transformer with metal shield that's riveted, not glued, to the chassis

Specifications:

  • Input Impedance: 2 X 20 kOhms
  • Output Impedance: 2 X 150 Ohms
  • Frequency Response: 20Hz-20kHz ±1dB
  • Level Change (input to output): -20dB (pad out), -40dB (pad in)
