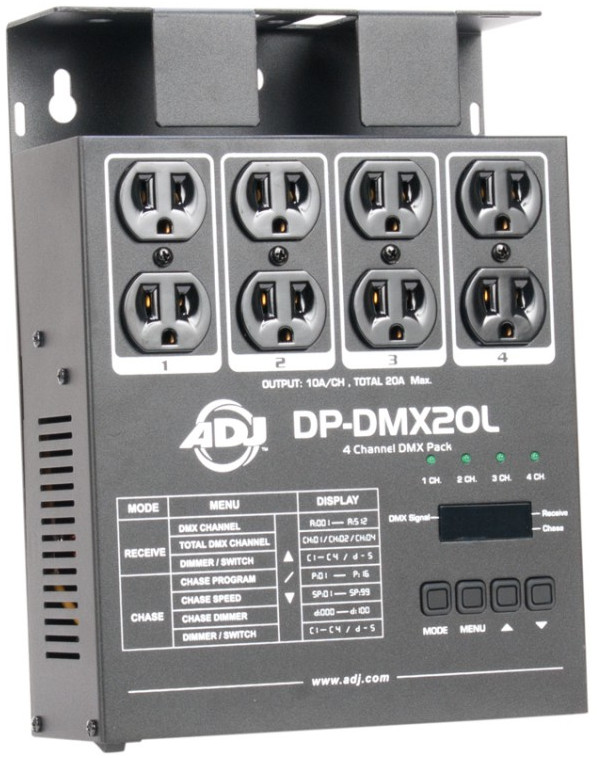

ADJ DP-DMX20L
4-Channel Portable DMX Dimmer / Switch Pack

OUR PART #:  DP-DMX20L

The ADJ DP-DMX20L is a 4-channel portable and universal DMX dimmer/switch pack.
Learn More
Our Price: $199.99
List Price: $259.95
You save 23%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ADJ DP-DMX20L
Qty:
In Stock

Similar Products

The ADJ DP-DMX20L is a 4-channel portable and universal DMX dimmer/switch pack. Each channel can individually be set to dim or switch and the pack can function as a one, two- or four-channel device. Using the packs digital display, the pack is quick and easy to set up.

There are dual Edison sockets supplied so more than one effect can be connected to each channel. There are 16 built-in chase sequences, with speed and intensity control, available for your convenience. This device also has four external channel fuses which allows for quick and easy serviceability while out on the road.

Another feature that's included is the reversible mounting panel on the rear that makes the DP-DMX20L easier to install. Also for your safety, there is a zero crossing circuitry for protection of the transformer loads when switching.

ADJ DP-DMX20L Specifications:

  • Digital display- used to set starting DMX address channels and set allother menu options
  • Selectable 1, 2, or 4 channel operation
  • Adjustable master dim level.
  • Two three prong Edison sockets per channel
  • 3 pin XLR DMX Input & Output
  • Four LED’s display channel activity
  • External channel fuses for quick and easy replacement
  • Sleek reversible mounting panel on the rear
  • Zero crossing circuitry for protection of transformer loads when switching
  • 16 built in Chases when in Chase mode with adjustable speed setting
  • Use in conjunction with Elation; DMX Operator Pro, Stage Setter-8,Scene
  • Reversible mounting brackets.
  • Setter, Scene Setter-48, Stage Desk-16 or any universal DMX controller
  • Power Input: 120V ~ 60Hz
  • Maximum Load: 10A per channel / 15A total
  • Dimensions (L x W x H): 10.25” x 8.25” x 3”
  • Weight: 6 lbs.
