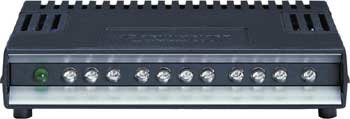

Sennheiser SI30
Wideband Modulator with Integral Radiator

OUR PART #:  SI30

The SI 30 is a wideband modulator with an integral radiator. It can be switched between operation on channel 1 (2.3 MHz), channel 2 (2.8 MHz) and stereo operation.
Learn More
Our Price: $329.95
List Price: $419.00
You save 21%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Sennheiser SI30
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SI 30 is a wideband modulator with an integral radiator. It can be switched between operation on channel 1 (2.3 MHz), channel 2 (2.8 MHz) and stereo operation. Due to its compact size and relatively low radiating power, the SI 30 modulator/radiator and the SZI 30 radiator are an ideal choice for smaller or medium-sized rooms, for covering recesses or for applications which require transmission of audio information to well defined zones, e.g. in museums.
NOTE: Power supply is not included. Please order as required.

Features

  • New, higher subcarrier frequencies to avoid interference with fluorescent lighting
  • Easy to install
  • Master system can be used independently for up to 750 sq. ft. of coverage
  • SZI 30 slave emitters offer increased coverage
  • Connects to line level audio source via 1/8" or 1/4" plug unbalanced
  • 1-year warranty

Specifications

  • Modulation: wideband FM
  • Nominal deviation: ± 50 kHz
  • Carrier frequencies: 2.3 MHz, 2.8 MHz
  • AF input: 3-pin Texas socket
  • AF input voltage for nominal deviation: 45 mV–4 V (automatic modulation control)
  • AF frequency response: 30–18,000 Hz
  • THD (1 kHz, nom. dev.): = 1 %
  • AF signal-to-noise ratio: = 60 dB(A) rms
  • RF input–RF output: 1/8" mono jack
  • Output impedance: approx. 50 ?
  • IR diodes: 11
  • Max. coverage area approx.: 80 m, single-chn.
  • Radiating power approx.: 0.5 W
  • Operating voltage: 24–27 V DC via 2-pin Texas socket
  • Current consumption: approx. 180 mA
  • Dimensions: approx. 4.64" x .98" x 3.54"
  • Weight: approx. 4.93 oz
