West Penn AQ227BK1000 1000' 12AWG 2-Conductor Stranded Aquaseal Cable for Fire Alarms, Black

OUR PART #: AQ227 MFR #: AQ227BK1000

Copied to clipboard

12/2 stranded bare copper conductors, overall unshielded with Aquaseal tape and overall jacket. ...Read more

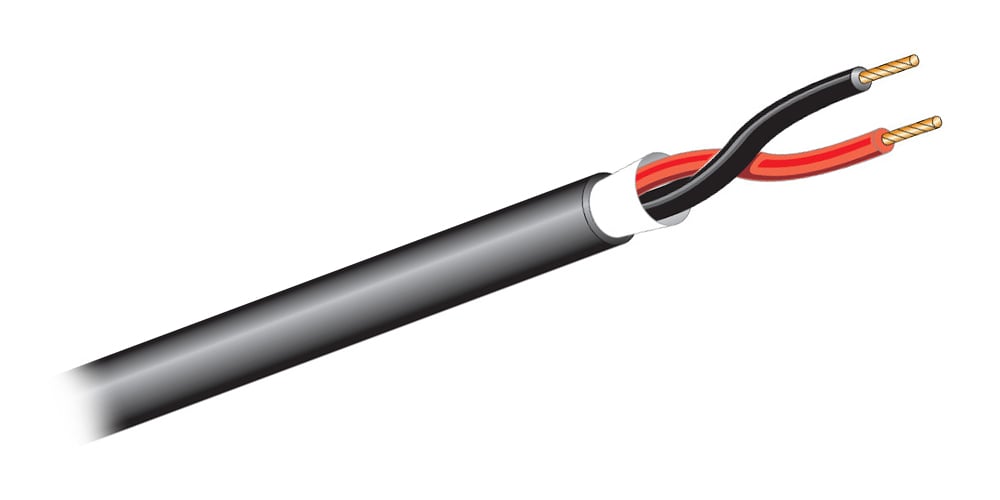

West Penn AQ227BK1000 1000' 12AWG 2-Conductor Stranded Aquaseal Cable For Fire Alarms, Black Image 1
West Penn AQ227BK1000 1000' 12AWG 2-Conductor Stranded Aquaseal Cable For Fire Alarms, Black
Our Price: $1,121.09
List Price: $1,150.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$32/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

12/2 stranded bare copper conductors, overall unshielded with Aquaseal tape and overall jacket. Materials suitable for outdoor use (direct burial), and indoor trays, allows a variety of uses for low-voltage industrial process control circuits, power-limited circuits, power-limited fire alarm circuits, power-limited tray cable (PLTC).

Specifications

  • Construction Parameters
    • Conductor: 12 AWG Bare Copper
    • Stranding: 19x25
    • Insulation Material: PVC with Nylon
    • Insulation Thickness: PVC: 0.015"; Nylon: 0.005"
    • Number of Conductors: 2 (1 pair)
    • Shield: None
    • Drain: None
    • Water-Blocking Tape: 2 Ply water swellable tape
    • Jacket Material: Sunlight/Moisture Resistant PVC
    • Jacket Thickness: 0.040"
    • Overall Cable Diameter: .340"
    • Approximate Cable Weight: 78 lbs/1m
    • Flame Rating: UL 1685 Vertical Tray
  • Electrical & Environmental Properties
    • Temperature Rating: -20 to 60 deg C
    • Operating Voltage: 300 V RMS
    • Max. Capacitance Between Conductors @ 1 kHz: 36 pf/ft
    • DC Resistance per Conductor @ 20 deg C: 1.7 ohms/1m
    • Insulation Colors: Black, Red
    • Jacket Color: Black
  • Mechanical Properties
    • Max. Recommended Pull Tension: 146 lbs.
    • Min. Bend Radius (install): 3.4"
