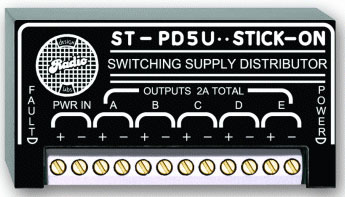

Radio Design Labs ST-PD5U
Power Supply Distributor for up to 5 Modules

OUR PART #:  STPD5U

Radio Design Labs' ST-PD5U is the ideal choice where power distribution from a current-limited switching power supply is needed.
Learn More
Our Price: $81.35
List Price: $108.80
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs ST-PD5U
Qty:
In Stock

Similar Products

Radio Design Labs' ST-PD5U is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to five modules from a single power supply. The current limiting circuitry in many switching power supplies will cause the supply to shut down upon power-up when a high current capacitive load is connected. Upon application of power, the ST-PD5U ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. If reverse polarity is connected to the input, the ST-PD5U disconnects the load until the condition is corrected.

In system design, various modules are frequently operated from a single power supply. Good engineering practice requires that the power wiring to each module originate at the power supply output. The ST-PD5U serves as the power source for each of five modules. A single ST-PD5U can provide power to RDL’s floating modules. A separate ST-PD5U can provide power to ground-referenced modules. (Do not attempt to intermix floating and ground-referenced modules from a single ST-PD5U.) Note: If using a linear power supply, distribute the voltage to multiple modules using an RDL ST-PD5

Wherever power distribution from a switching power supply is needed, the ST-PD5U is the ideal choice. Use the ST-PD5U combined with other RDL RACK-UP®, STICK-ON®, Flat-Pak™ or TX™ series products as part of a complete audio/video system

Features:

  • Distribution of 24 Vdc Power
  • Soft-Start from Switching Supply
  • Distribution of dc Power
  • Up to 5 Power Distribution Points
  • Voltage Presence Indication
  • Reverse Voltage Protection

Typical Performance:

  • Input/Output Voltage: 24 Vdc @ 2 A (Intended for use with current limited switching supply)
  • Number of Outputs (5): Total load current must not exceed 2 A
  • Indicators (2): POWER LED and FAULT LED
