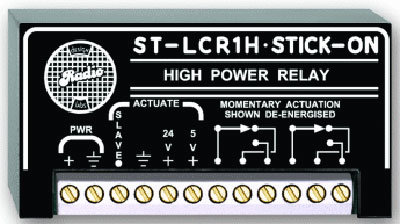

Radio Design Labs ST-LCR1H
High-Power Logic Controlled Relay

OUR PART #  STLCR1H

Our Price: $111.15
List Price: $148.69
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' ST-LCR1H provides dry-switching contacts for high power switching, an LED indicator showing relay activation, and input connections. Switching contacts are suited to switching many 8 Ohm, 70.7 V or 100 V speaker lines.

The relay closes when an input signal is applied. The relay releases when the input signal is removed. The ST-LCR1H is ideally suited to applications where high power switching contacts need to be added to nearly any type of control signal. The relay may be activated from any of 3 input signals: 5 Vdc, 24 Vdc, or open-collector.

Use the ST-LCR1H individually, or combine it with other RDL® products as part of a complete audio/video system.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Features:

  • Switching of Speaker Lines
  • Control from Switch or Logic Circuits
  • DPDT Switching Contacts
  • Open-Collector Switching
  • 8 Amp Relay Contacts

Specifications:

  • Control Inputs:
    -SLAVE terminalused as an input from remote push-button or switch turns on relay when thatswitch is on. Activation is by connecting this input to Ground. Input fromother equipment’s open-collector output turns relay on when open-collector ison.
    NOTE: RDL switchingSTICK-ONs® have open-collector outputs suitablefor driving an ST-LCR1H.
    5V+ accepts 3.5to 12 Vdc to turn on relay. Relay is on only when this control signal isapplied.
    24V+ accepts 12 to 35 Vdc to turn on relay. Relay is ononly when this control signal is applied.
  • Control Output: SLAVE terminal open-collector @ 25 mA suitable to drive indicators or slave LCRs
  • Switching Contacts: Double-pole, double-throw
  • Maximum Switching Power: 60 W (220 Vdc, 125 Vac, 2A)
  • Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 50 mA*
    *Assumes 20 mA max load at SLAVE output
