Electro-Voice EVID 3.2T
Pair of Dual 3.5" 70V Speakers with Transformer

OUR PART #:  3.2T

Electro-Voice's EVID 3.2 is a very compact full-range loudspeaker ideal for indoor and outdoor applications requiring high-quality sound.
Learn More
Our Price: $219.00
List Price: $315.00
You save 30%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EVID 3.2T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Electro-Voice's EVID 3.2 is a very compact full-range loudspeaker ideal for indoor and outdoor applications requiring high-quality sound. Its shape and size make it nearly invisible for use in background/foreground music systems for restaurants, bars, patios, retail, and other applications.

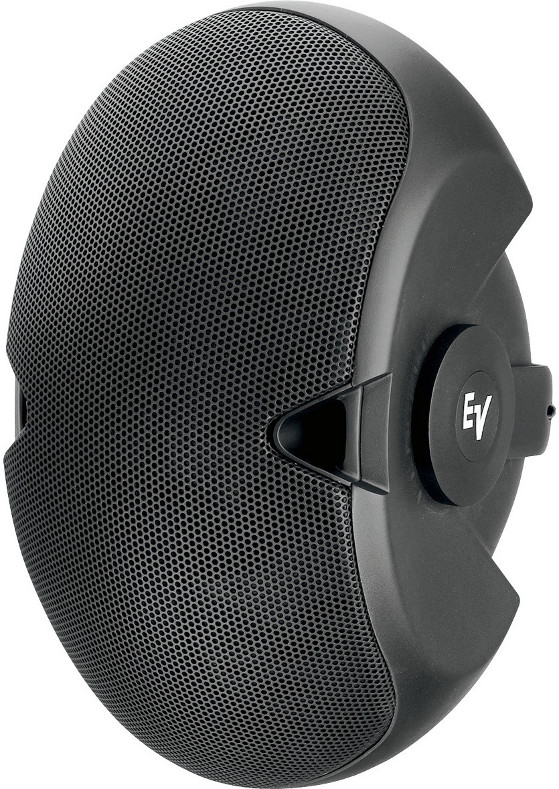

NOTE: One is shown above for the purpose of showing detail. TWO speakers come with purchase.

The 3.2's three-dimensional elliptic baffle symmetrically locates the .75” Ti direct radiator high-frequency element in front of and between the 3.5” low-frequency drivers. The careful shaping, location, and 10° splaying of the LF units provide coverage control by the resulting line array. Lobing is controlled by physically “shadowing” the LF transducers from each other over the bandwidth where they would normally
exhibit interference. EVID's mounting system provides greater range of aiming angles in both horizontal and vertical planes than other types. The curved grille features designed-in weather resistance and a hidden leash for safety.

Electro-Voice EVID 3.2T Features:

  • Line-array enhanced coverage control
  • Organic, unobtrusive shape
  • Strong-Arm-MountTM for easy, flexible aiming
  • Full-bandwidth overload protection
  • Weather resistant - Conforms to Mil Spec 810 and IEC 529 IP 34
  • Dual LF transducers for extended bass and greater power handling and output
  • Ti direct-radiator HF transducer, Neodymium structure
  • High sensitivity
  • Magnetically shielded
  • Zinc-plated grilles
  • Transformer Versions

Electro-Voice EVID 3.2T Specifications:

  • Frequency Response (-10 dB): 85Hz - 20kHz
  • Power Handling:  150W Cont. Prog./300W Peak
  • Sensitivity:  87dB, 1W, 1m
  • Impedance: 8 ohms
  • Max SPL: 108 dB
  • Horizontal Coverage:  140°
  • Vertical Coverage: 100°
  • Crossover Frequency: 2.4kHz
  • LF Transducer: 2 x 3.5” (90 mm)
  • HF Transducer: .75” (20 mm)
  • Protection: Full System
  • Weather Resistance: Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings
  • Swing x Rotation: 100° x 90°
  • Terminals: Phoenix Connector
  • Enclosure Material: ABS (paintable)
  • “t” Version Wattage Taps: 5W 70V/10W 100V
  • Dim (H x W x D): 9.2” x 5.1” x 6.5” (234 mm x 130 mm x 165 mm)
  • Net Weight (each): 3.3 lbs. (1.5 kg)
  • Shipping Weight (pair): 8.6 lbs. (3.9 kg)
  • Included Accessories: SAM™, hex key
Array Bracket for EVID or ZX1i loudspeaker arrays
Electro-Voice AB-ZE Array Bracket for EVID or ZX1i loudspeaker arrays
AB-ZE (P/N 301918-001)The AB-ZE is a versatile array bracket that is used to suspend EVID or ZX1i loudspeaker arrays, using a unique designto minimize assembly time. The AB-ZE kit is compatible with EVID 3.2, EVID 4.2, EVID 6.2, ZX1i-90 ...
