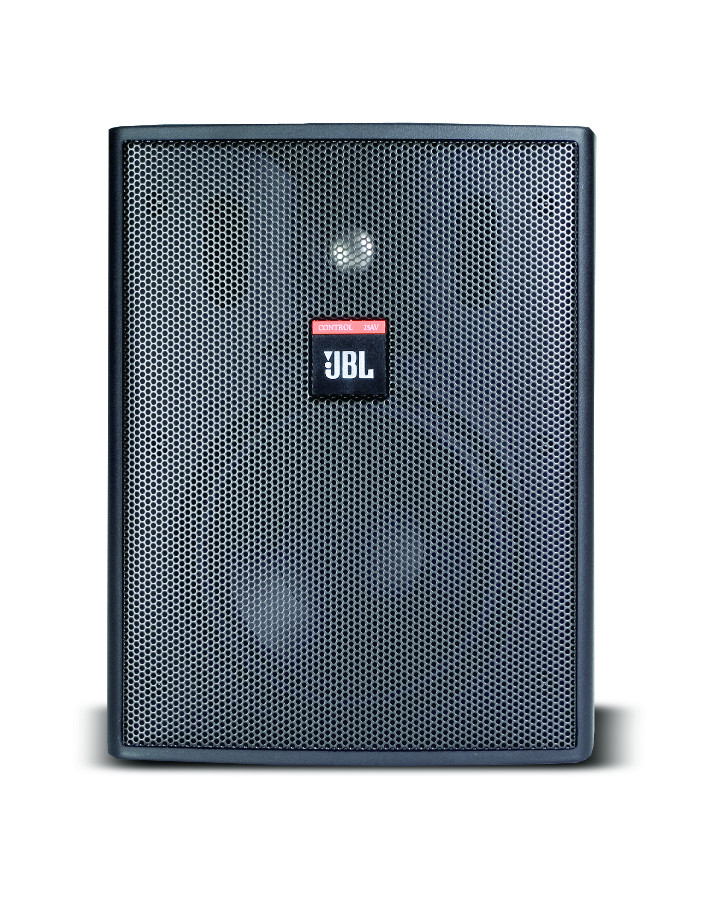

JBL Control 25AV
150W 5.25" Shielded Loudspeaker

OUR PART #:  CONTROL-25AV

The JBL Control® 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker.
Learn More
Our Price: $181.00
List Price: $225.75
You save 20%!

This product must be purchased in multiples of 2

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL Control 25AV
Qty:
In Stock

Similar Products

The JBL Control® 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker.

JBL Control 25AV Features:

  • Video shielded for use near video monitors
  • Extremely smooth frequency response
  • Stainless steel grill for harsh environments
  • 60 W transformer for 70 V or 100 V lines, with 8 ohmsthru
  • SonicGuard™ overload protection
  • 130 mm (5.25 in) polypropylene coated woofer, 10 mm(.75 in) titanium coated horn-loaded tweeter
  • Includes InvisiBall® mounting hardware and sealedinput panel cover
  • Screw-down input terminals
  • 100° x 100° high frequency horn

JBL Control 25AV Specifications:

  • Frequency Range: 70 Hz - 23 kHz (-10 dB)
  • Power Capacity: 200 W Continuous Program Power; 100 WContinuous Pink Noise
  • Nominal Sensitivity: 87 dB SPL, 1 W @ 1 m (3.3 ft)
  • Midrange (+/-1.5 dB, typical): 130 Hz - 14 kHz
  • Nominal Coverage: 100° x 100°
  • Maximum SPL @ 1m: 113 dB continuous peak pink noise107 dB continuous average pink noise 103 dB continuous average music or speech
  • Directivity Factor (Q): 4.9 dB, averaged 500 Hz to 4kHz
  • Directivity Index (DI): 6.9 dB, averaged 500 Hz to 4kHz
  • Nominal Impedance: 8 ohms
  • Minimum Impedance: 6.7 ohms at 230 Hz
  • Crossover Network: Second Order Low Pass, SecondOrder High Pass, Complex Optimization for Maximally Flat Response
  • Low Frequency: 130 mm (5.25 in) polypropylene-coatedpaper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
  • High-Frequency: 20 mm (.75 in) titanium coated PEI
  • Enclosure Material: High Impact polystyrene
  • Grille: Painted stainless steel, black or white tomatch cabinet, paintable
  • Overload Protection: Full-range power limiting toprotect network and transducers. Internal fuse to protect during exceptional overload condition
  • Environmental: Exceeds Mil Spec 810 for humidity,salt spray, temperature & UV. IEC 529 IP-X4 splash proof rating
  • Terminations: Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
  • Safety Agency Rating: Transformer is listed per UL1876
  • Rotation: Against wall on InvisiBall Base: 37°vertical 44° horizontal On bracket: 44° all directions
  • Dimensions (H x W x D): 236 x 186 x 159 mm (9.3 x 7.4x 6.3 in)
  • Included Accessories: 1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench
