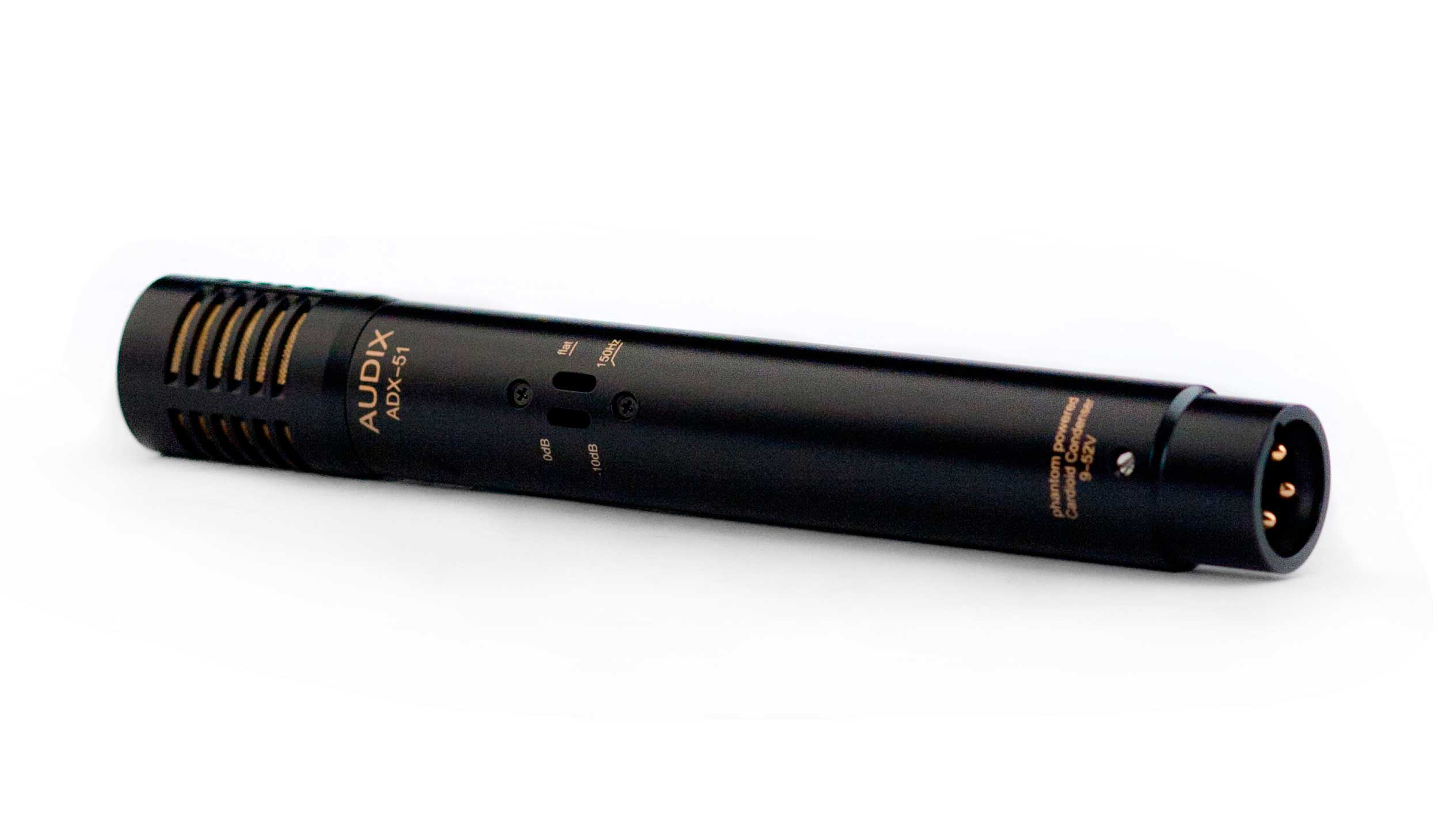

Audix ADX51 Small-Diaphragm Cardioid Condenser Instrument Microphone

OUR PART #: ADX51

Copied to clipboard

Audix ADX51 professional electret condenser microphone The ADX51 is a professional pre-polarized condenser microphone known for its clear, accurate response, and flexibility to handle close or distance miking for a wide variety of acoustic instruments. The uniformly controlled cardioid polar pattern is designed to capture the acoustics of an instrument while isolating it from the rest of the instruments on stage. ... ...Read more

Audix ADX51 Small-Diaphragm Cardioid Condenser Instrument Microphone Image 1
Audix ADX51 Small-Diaphragm Cardioid Condenser Instrument Microphone
Our Price: $249.00
List Price: $299.00
You save 17%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Audix ADX51 professional electret condenser microphone

The ADX51 is a professional pre-polarized condenser microphone known for its clear, accurate response, and flexibility to handle close or distance miking for a wide variety of acoustic instruments.

The uniformly controlled cardioid polar pattern is designed to capture the acoustics of an instrument while isolating it from the rest of the instruments on stage.

Applications

  • Drum overheads, hi-hat, acoustic instruments
  • Cymbals
  • Percussion table
  • Group vocal, spoken word
  • Ambient room miking
  • Audience mics for in-ear monitors

Includes

  • ADX51 Studio Condenser Microphone
  • Microphone Clip
  • External Windscreen
  • Carrying Pouch

Features

  • Wide frequency range (40 Hz-18kHz)
  • 14mm gold vapor diaphragm
  • 10dB pad and bass roll-off filter at 150 Hz
  • Precision machined body with durable black finish
  • Steel mesh grill
  • Gold plated XLR connector

Specifications

  • Transducer Type: Pre-Polarized Condenser
  • Frequency Response: 40 Hz – 18 kHz
  • Polar Pattern: Cardioid
  • Output Impedance: 100 ohms
  • Sensitivity: 17 mV / Pa @ 1k
  • Capsule Technology: Black Electret GV Diaphragm
  • Off-Axis Rejection: >15 dB
  • Maximum SPL: ≥132 dB
  • Power Requirements: 9-52 V Phantom
  • Connector: 3-pin XLRm
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Materials / Finish: Brass / Black Finish
  • Weight: 184 g / 6.5 oz
  • Length: 160 mm / 6.3 in
