Product Overview
Because of its optimized mechanical construction and conscious omission of modularity, which is unnecessary in many cases, the "Series 180" KM 184 is predestined for economy-minded production and home recording studios. The KM 184 cardioid microphone has become a standard within the global studio community.
Applications
The KM 184's slender shape and the transmission characteristics described below make it especially suitable for a wide range of tasks in the radio and television sector.
Includes

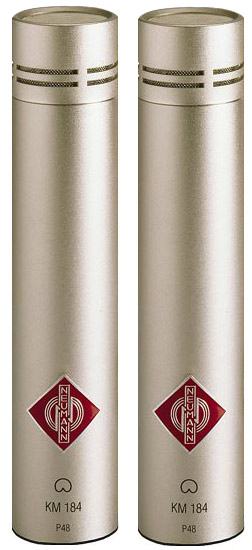

- Two KM 184 cardioid condenser microphones
- Two SG 21 BK stand mounts
- Two WNS 100 windscreens
Acoustic Features
- The KM 184 microphone is the successor of the KM 84, which has been used worldwide since the seventies.
- The pressure gradient transducer KM 184 features a very smooth frequency response not only for the 0° axis, but also for lateral (off-axis) sound incidence. In typical usage, there is no coloration of sound over a wide pickup angle.
- Although the KM 184 has the same capsule as the KM 84, the microphone differs slightly on the 0° frequency response: The KM 184 has a gentle rise at about 9 kHz, a characteristic that was introduced very successfully with the KM 140. The result is a tonal balance that is fresher and livelier when compared to the KM 84 with its flat frequency response in that band.
- This difference was achieved with just a slight change of the capsule's rear opening, and is not due to resonances.
Electrical features
- The "Series 180" microphones have the same transformerless circuitry as is used in the KM 100 system, resulting in excellent technical specifications:
- Compared to the KM 84, the dynamic range of the KM 184 increased by 24 dB mainly through the reduction of self-noise level to only 22 dB (CCIR) and an increased sound pressure handlingcapability of up to 138 dB.
- The microphones operate without any problems, even if the input of following equipment happens to be unbalanced, for example as in some DAT recorders.
- The output of the "Series 180", as in all Neumann microphones, is balanced and phantom (48V) powered.
- Economy
- The "Series 180" is a good choice for all users who look for a high-quality miniature microphone, but do not need the complex, modular KM 100 system, which continues to be part of the Neumann product range.
- The mechanical construction was simplified, for example, capsule and output stage cannot be separated from each other. For this reason the "Series 180" is an economical alternative without giving up the electroacoustic features the users expect from Neumann microphones.
Specifications
- Acoustical operating principle: Pressure gradient transducer
- Directional pattern: cardioid
- Frequency range: 20 Hz - 20 kHz
- Sensitivity at 1 kHz into 1 kohm: 15 mV/Pa
- Rated impedance: 50 ohms
- Rated load impedance: 1000 ohms
- Equivalent noise level, CCIR*: 22 dB
- Equivalent noise level, A-weighted*: 13 dB-A
- S/N ratio, CCIR* (rel. 94 dB SPL): 72 dB
- S/N ratio, A-weighted* (rel. 94 dB SPL): 81 dB
- Maximum SPL for THD 0.5%**: 138 dB
- Maximum output voltage: 10 dBu
- Supply voltage (P48, IEC 61938): 48 V ± 4 V
- Current consumption (P48, IEC 61938): 3.2 mA
- Matching connectors: 3-pin XLR-F
- Weight: approx. 80 g
- Diameter: 22 mm
- Length: 107 mm
- * According to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
- **Measured as equivalent el. input signal
