Product Overview

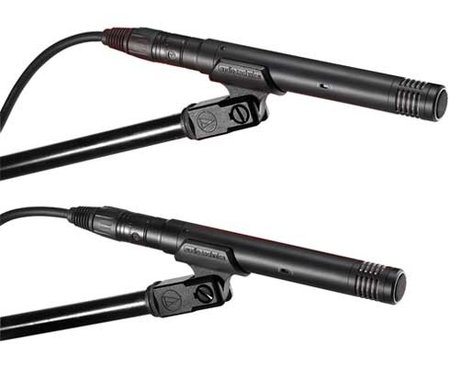

The AT4041SP Studio Pack offers two AT4041 studio condenser microphones. Engineered to meet the most critical acoustic requirements of professional recording, broadcast and live sound, the AT4041 features a smooth, extended frequency response with a slight rise in the high-frequency region and a transformerless output for very high SPL-handling capability. The element back plate holds a fixed charge and has been aged to provide energy stabilization. The surface of the back plate is precision milled to ensure maximum charge linearity, resulting in a reduction in both frequency response peaks and diaphragm break-up distortion.
Applications
- Drum overheads
- Acoustic guitar
- Piano
- Horns
- Under snare pickup
Includes
- (2) AT4041 Cardioid Condenser Microphones
- (2) Stand clamps
- (2) Windscreens
- Wooden storage case
Features
- Smooth, extended frequency response with a slight rise occurring in the high-frequency region
- Ideal for drum overheads, acoustic guitar, piano, horns and under snare
- Low-mass diaphragm improves transient response, increases response bandwidth and reduces handling and mechanical noise transfer
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
- Switchable hi-pass filter and rugged turned-brass microphone housing
Specifications
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar Pattern: Cardioid
- Frequency Response: 20-20,000 Hz
- Low Frequency Roll Off: 80 Hz, 12 dB/octave
- Open Circuit Sensitivity: -36 dB (15.8 mV), re 1V at 1 Pa
- Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.
- Dynamic Range: 121 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio: 70 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 48V DC, 3.2 mA typical
- Switches: Flat, roll-off
- Weight: 4.2 oz (120 g)
- Dimensions: 6.28" (159.5 mm) long, 0.83" (21.0 mm) body diameter
- Output Connector: Integral 3-pin XLRM-type
