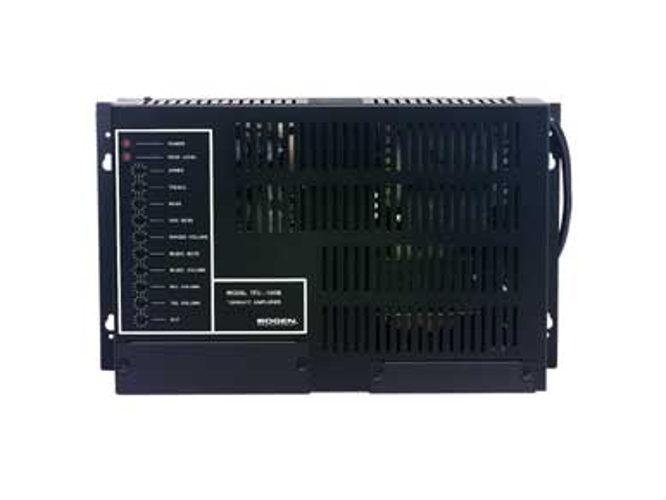

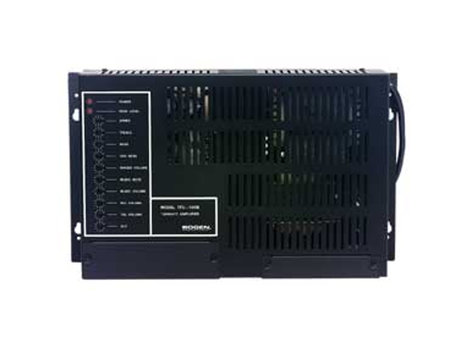

Bogen Communications TPU250
Paging Amp 250Watt


The Bogen TPU250 is a wall-mounted telephone paging amplifier rated at 250 watts. This amplifier permits paging from telephone and/or microphone.
Learn More
Our Price: $879.47
List Price: $1,070.49
You save 18%!
Write the first review.
Bogen Communications TPU250
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Bogen TPU250 is a wall-mounted telephone paging amplifier rated at 250 watts. This amplifier permits paging from telephone and/or microphone. Music input through an RCA jack or screw terminals. Voice-activated, variable level, music mute with fade back after page. This amp also includes a night ringer which sends an electronic ringing tone signal through all speakers, alerting personnel of incoming calls during non-business hours. Jacks are also provided to bridge two TPU amplifiers to double the number of inputs and outputs.

Bogen Communications TPU250 Features:

  • 250 Watts
  • Inputs for 600-ohm balanced telephone line, LO-Z balanced microphone, and background music
  • Music input (RCA jack or screw terminal)
  • Integral automatic level control (ALC) circuit for controlling pages mady be persons with varying voice levels and paging techniques
  • Page from telephone and/or microphone
  • Signal-activated paging channel automatically mutes back-ground music
  • Adjustable background music muting level during a page
  • Aphex Aural Exciter increases intelligibility, improves perceived loudness (with no increase in power), and reduces listener fatigue
  • Separate controls for page volume, music volume, night ringer, music mute, and Aphex Aural Exciter
  • Bass and Treble controls
  • Built-in night ringer activated by contact closure or by 90V ring signal
  • Balanced or unbalanced 16-ohm, 25V, 25VCT, and 70V outputs are available
  • VOX sensitivity level control eliminates transmission of background noise when paging from a telephone
  • Thermal and electronic overload protection
  • Jacks provided for bridging additional TPU amplifiers
  • Brackets are attached for easy wall mounting
  • Can be rack-mounted with RPK82 kit
  • Peak level indicator lights when amplifier is driven into clipping
  • 120V AC, 60Hz power source
  • UL and CSA listed

Bogen Communications TPU250 Specifications:

  • Frequency Response: 70Hz to 15kHz +/-1dB
  • Distortion: Less than 1%
  • Hum & Noise: (20Hz-20kHz) Music: -70dB; Tel:-70dB; Mic: -55dB
  • Sensitivity: Music: 85mV; Tel: -20dBm (77mV); Mic:600µV
  • Tone Control: Bass - +/-9dB @ 100 Hz; Treble - +/-9dB@ 10kHz
  • Regulation: 2dB
  • Inputs: Tel: 600-ohm balanced line,transformer-isolated; Music: Hi-Z source RCA jacks or screw terminals; Mic:Lo-Z balanced, screw terminal connection; Music Mute: Mutes music during amicrophone page; Contact Ringe: Sounds night ringer tone whencustomer-supplied dry contacts are closed; Tel Ring: Sounds night ringer inresponse to 90V ring signal; Bridging: Permits bridging of two amplifiers
  • Outputs: 25V, 25VCT, and 70V, 16 ohms balanced orunbalanced
  • Controls & Indicators: POWER & PEAK LEVEL LEDindicators. APHEX, TREBLE, BASS, VOX SENS, RINGER VOLUME, MUSIC MUTE, MUSICVOLUME, MIC VOLUME, TEL VOLUME, ALC controls (screwdriver-adjustable)
  • Overload Protection: thermal and electronic overloadprotection included. 1.0A, 120V AC circuit breaker
  • Power Requirements: (120V AC, 60Hz) 0.75A
  • Finish: Black with silver lettering
  • Dimensions (W x H x D): 14 3/16" x 8 3/8" x 3 5/8"
