Mogami W2524-BY-FOOT-BLACK

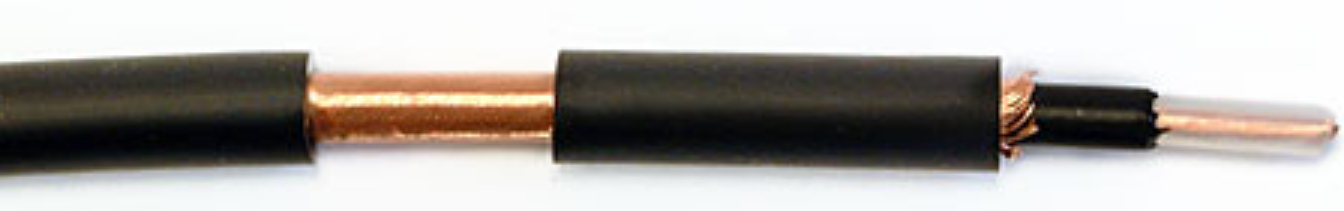

1-Conductor 20 Gauge Instrument and Guitar Cable in Black By the Foot

OUR PART #:  W2524-BY-FOOT-BLACK

The W2524 is a high impedance transmission guitar cables.
Learn More
Our Price: $1.69
List Price: $2.01
Save up to 49% when you order by quantity!
  • Buy 50: $1.34 each.
  • Buy 100: $1.14 each.
  • Buy 200: $1.02 each.

5.0 / 5

★★★★★ 1 Review. Write Yours

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Mogami W2524-BY-FOOT-BLACK
Qty:
Similar Products

The W2524 is a high impedance transmission guitar cables.

Most musical instrument sound pick-ups such as those in electric guitars are comprised of high impedance circuits driven by voltage, in other words by very small electrical current flow. Therefore, so-called MICROPHONICS (noise) becomes a critical problem. (Microphonics means noise that is generated when the cable is moved and or tapped when the cabling circuit is a high impedance link.) Guitar cables must be counter-measured against this, so, a conductive PVC layer is placed under the shield conductor in most cases even though it may have a bad affect on audio sound quality. Therefore, the conductive PVC (black carbon PVC) layer must be removed together with the shielding conductor when wiring, otherwise we receive a strange claim that the cable is shorting.

Mogami W2524 Instrument Cable Specifications:

  • Conductor
    • 50/0.12A
    • Size(mm²): 0.305mm² (#23AWG)  0.565mm² (#20AWG)
  • Insulation
    • Ov. Dia.(mm): 2.7Ø (0.106")
    • Material: PE
    • Color: Clear
  • Sub-Shield
    • Ov. Dia.: 0.130"
    • Material: Conductive PVC (Carbon PVC)
    • Color: Black
  • Main-Shield: Approx. 55/0.18A
  • Jacket
    • Ov. Dia.(mm): 0.236"
    • Material: PVC
    • Color: Black
  • Roll Sizes: 328ft/656ft
  • DC Resistance at 20°C
    • Inner Conductor: 0.033 Ohms/m (0.010 Ohms/Ft)
    • Shield Conductor: 0.014 Ohms/m (0.0043 Ohms/Ft)
  • Capacitance at 1kHz, 20 deg C: 130pF/m (39.7pF/Ft)
  • Inductance: 0.2µH/m (0.061µH/Ft)
  • Electrostatic Noize: 0.15mV Max.
  • Electromagnetic Noise At 10kHz: 0.07mV Max.
  • Microphonics: 0.3mV Max
  • Voltage Breakdown: Must withstand at DC 500V/15sec.
  • Insulation Resistance:  100000 MOhms × m Min. atDC 500V , 20°C
  • Flex Life; 15,000 cyles
  • Tensile Strength (26 Deg C, 65%RH): 578 N
  • Emigration: Non-emigrant to ABS resin
  • Applicable Temperature: -20deg C +60deg C(-4°F +140deg F)
