Product Overview

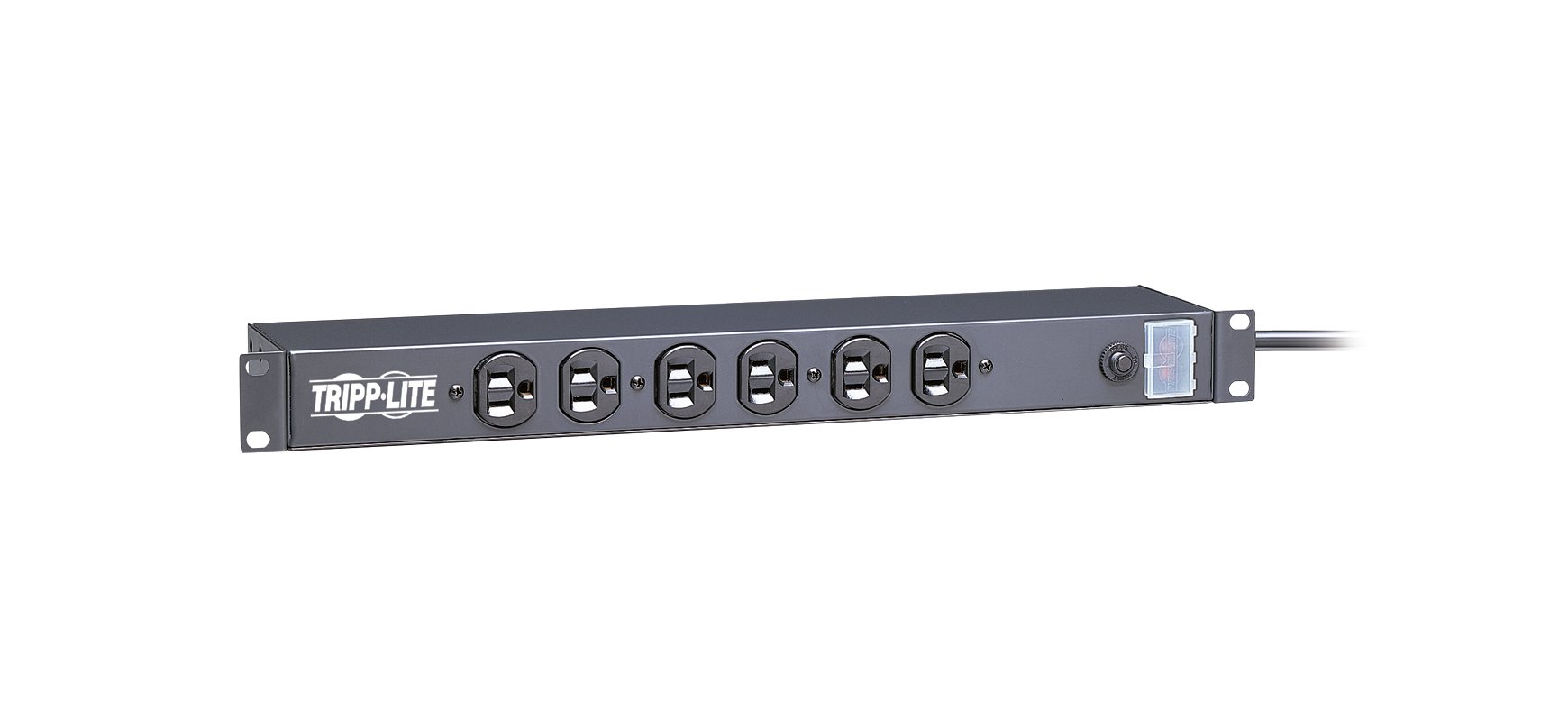

Offering 15 amp capacity AC power distribution in a versatile 1U multi-mount cabinet, Tripp Lite's RS-1215 Power Strip features detachable mounting flanges that are configurable for rack-mount, wall-mount and under-counter installation. It fills just a single rack-space when installed in any standard 19-inch rack, and meets EIA standards. Its unfiltered electrical pass-through makes it great for distributing generator power or as an alternate waveform UPS within rack enclosures, network closets and more. Its outlets are 12 NEMA5-15R (6 front / 6 rear), and it includes a 15ft AC power cord. A lighted switch with semi-transparent cover prevents risk of accidental turn-off.
Includes
- RS-1215 unit
- Mounting hardware
- Instruction manual
Features
- Versatile all-metal cabinet with detachable mounting flanges allows rack-mount, wall-mount, under-counter and other creative mounting options
- Uses one rack space (1U) in standard 19-inch rack ("zero U" mounting possible in many racks)
- Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
- (12) NEMA5-15R output receptacles (6 front / 6 rear)
- 15ft AC cord with NEMA5-15P plug connection
- Lighted power switch confirms power on/off status
- Snap-in switch guard prevents accidental turn-off
- 15-amp electrical capacity with circuit breaker
- 120 V AC, 50/60 Hz electrical compatibility
Specifications
- Output:
- Frequency Compatibility: 50 / 60 Hz
- Output Receptacles: (12) 5-15R
- Output: 1800 W
- Circuit Breaker: 15 A
- Transformer Accommodation: (5) Yes
- Outlet Orientation: 6 front-facing / 6 rear-facing
- Right-Angle Outlets: No
- Input:
- Nominal Input Voltage(s) Supported: 120 VAC
- Recommended Electrical Service: 15 A 120V
- Input Cord Length: 15ft
- Voltage Compatibility: 120 VAC
- Input Plug Type: NEMA 5-15P
- Integrated Cord Clip: No
- User Interface, Alerts and Controls:
- Switches: Red illuminated 2 positon switch controls power to all outlets
- Locking Switch Cover: Transparent locking switch cover prevents accidental shutoff
- Note: further Specifications and information can be found within the "RS-1215 Datasheet" located under the "Documentation" tab above.
