Radio Design Labs FP-UBC2
Unbalanced to Balanced Converter

OUR PART #:  FP-UBC2

Radio Design Labs'  FP-UBC2 is the ideal choice for connectorized conversion from unbalanced to balanced audio. This module features two identical channels.
Learn More
Our Price: $181.35
List Price: $242.60
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs FP-UBC2
Qty:
In Stock

Similar Products

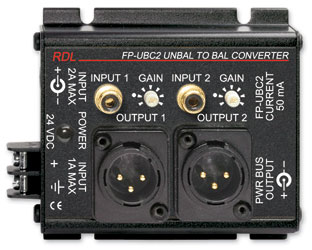

Radio Design Labs'  FP-UBC2 is the ideal choice for connectorized conversion from unbalanced to balanced audio. This module features two identical channels. Gold-plated phono jacks are utilized for each unbalanced input channel. Each output is balanced, connected through an XLR jack. A gain trim potentiometer is provided for each channel.

The normal gain setting is indicated for the trimming potentiometer. This setting produces a +4 dBu balanced output for a –10 dBV unbalanced input. The gain is adjustable –5 dB to +10 dB from the normal gain. Therefore, a +4 dBu output signal is possible from input signals ranging from –20 dBV to –5 dBV.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Features:

  • Stereo Unbalanced to Balanced Audio Conversion
  • Connectorized Audio Converter
  • Output Level Trim
  • Low-Noise and Low-Distortion Conversion
  • Cabinet, Shelf or Rack Mounting
  • Convenience of RDL FLAT-PAKs

Specifications:

  • Amps per FP-UBC2: 2 identical circuits (stereo or dual mono operation)
  • Gain: -5 dB to +10 dB (adjustable relative to +4 dBu output for –10 dBV input); (separate controls for each channel)
  • Input Level: -20 dBV to -5 dBV (for +4 dBu output)
  • Input Impedance: 10 kO
  • Input Configuration: Unbalanced Output Impedance: 150 O balanced, drives 600 O or 10 kO lines
  • Output Configuration: Balanced or unbalanced
  • Frequency Response: 20 Hz to 40 kHz (+/- 0.25 dB)
  • THD+N: < 0.05%; typ. 0.01% (1 kHz)
  • IMD: < 0.02%
  • Output Level: +4 dBu
  • Headroom: > 18 dB (at rated output level of +4 dBu)
  • Noise: < -85 dB referred to +4 dBu (20 Hz to 20 kHz)
  • Crosstalk: Better than 70 dB (20 Hz to 20 kHz);<-80 dB (typ. 1 kHz)
  • Power Requirement: GROUND-REFERENCED 24 Vdc @ 50 mA
  • Dimensions: 1.29" H x 3.25" W x 4.07" L (3.28 x 8.26 x 10.34 cm)
