Rolls RA200
100 W RMS/Channel @ 4 Ohms Power Amplifier

OUR PART #:  RA200

The Rolls RA200 features two 100 watt RMS - 4 ohm outputs, a bridging switch, MOSFET drivers in a voltage and current gain circuit...
Learn More
Our Price: $345.00
List Price: $450.00
You save 23%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Rolls RA200
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

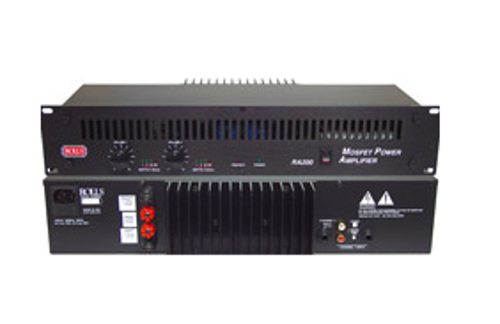

The Rolls RA200 features two 100 watt RMS - 4 ohm outputs, a bridging switch, MOSFET drivers in a voltage and current gain circuit, one second power-up delay, and LED power output meters. The unit is housed in a painted steel chassis and includes a special high performance transformer, and a fused power line. The MOSFET output stage is fault protected which allows the RA200 to forgive momentary output shorts, and has over-temperature protection. CAUTION: The RA200 is convection cooled. Adequate ventilation room for the heat sink fins on the rear panel must be provided.

Rolls RA200 Features:

  • MOSFET drivers in a voltage and current gain circuit
  • 1 second turn-on delay
  • LED power output meters
  • Fault protected outputs

Rolls RA200 Specifications:

  • Power Output, Stereo:
    • 100 Watts RMS/ch. 4 ohms
    • 70 Watts RMS/ch. 8 ohms
  • Bridged: 200 Watts RMS 8 ohms
  • Input Connectors: 1/4" TRS balanced and RCA
  • Output Connectors: 1/4" and 5-way binding posts
  • Sensitivity: <1 VRMS for full output
  • THD: <.08% (1kHz @ 1 Watt)
  • S/N Ratio: 106 dBU
  • Power Bandwidth: DC - 30 kHz +/- 1dB
  • Damping Factor: > 150
  • Slew Rate: 100 Volts/micro Second
  • Phase Shift: <10 Deg., 20Hz - 20kHz
  • Input Impedance: 10 K ohms Balanced
  • Power: 120 VAC 60Hz 2.5A, 230 VAC 50Hz
  • Dimensions: 19" x 3.5" x 7.5" (48 x 9 x 19 cm)
  • Weight: 12 lbs (5.5 kg)
