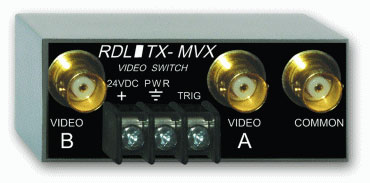

Radio Design Labs TX-MVX
Manual Remote-Controlled Video Switch

OUR PART #  TXMVX

Our Price: $101.70
List Price: $136.04
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' TX-MVX features 2x1 video selection or 1x2 video routing. The TX-MVX allows for manual switching, remote control, NTSC/PAL operation and has BNC connectors. Use the TX-MVX individually in NTSC or PAL systems, or combine it with other RDL products and various mounting accessories as part of a complete audio/video system.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Features:

  • Manual Switching of Video
  • Open-Collector Switching of Video
  • 2 x 1 Video Selection
  • 1 x 2 Video Routing
  • Operation with NTSC or PAL
  • Remote-Controlled Video Switching

Typical Performance:

  • Input(s), Output(s): BNC, ground-referenced
  • TRIG Input Current: 2 mA
  • TRIG Input Threshold: 2 Vdc
  • Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 30 mA
24 VDC 500mA Switching Power Supply
Radio Design Labs PS-24AS 24 VDC 500mA Switching Power Supply
Radio Design Labs' PS-24AS is a 24 Vdc switching power supply with a North American AC plug.  500 mA, dc plug.Specifications: Input: 100 to 240 VACOutput: 24 Vdc, 500 mA (UL, CSA)Dimensions: 1.65" x 2.75" x 1.45" (4.2 x 7 x 3.7 ...
