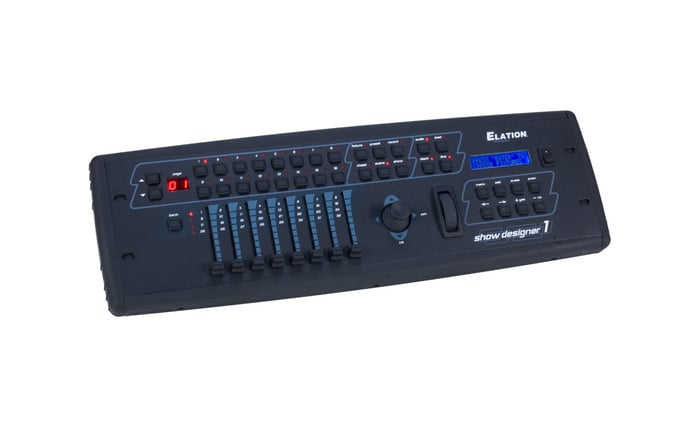

Elation Pro Lighting Show Designer 1
Intelligent DMX Lighting Controller

OUR PART #:  SHOW-DESIGNER-1

The Elation Pro Lighting Show Designer 1 offers all the same features as the popular Show Designer plus added features to make lighting control and show designing even easier.
Learn More
Our Price: $800.00
List Price: $1,000.00
You save 20%!
Write the first review.
Elation Pro Lighting Show Designer 1
Qty:
In Stock

Related Products

The Elation Pro Lighting Show Designer 1 offers all the same features as the popular Show Designer plus added features to make lighting control and show designing even easier!

Elation Pro Lighting Show Designer 1 Features:

  • PAN/TILT Joystick
  • Controller comes “TabletopStyle”–Includes removable rubber rails to fit standard 19" rack mount
  • Control a wide variety of DMX intelligent lighting fixtures
  • Large library of fixture settings for many different brands of lighting equipment
  • Control up to 512 channels (USITTDMX-512 compatible)
  • Control up to 16 large fixtures (upto 32 channels each) or 16 groups of smaller fixtures
  • Hold up to 1024 scenes, 512 presets, 256 chases and 256 shows
  • Fixtures and memories are quickly selectable from an array of 16 switches
  • Software updates can be easily downloaded (contact your Sales Professional for more information
  • MIDI Support

Elation Pro Lighting Show Designer 1Front Panel:

  • 8 faders allow direct control of channel settings for 32 channel fixtures using a bank switch
  • Large rotary wheel for data entry
  • Joy stick for pan and tilt control
  • Pan and tilt can also be controlled using a standard PC trackball/keyboard (sold separately-contact your Sales Professional)
  • 32 character backlit LCD display for easy programming

Elation Pro Lighting Show Designer 1Rear Panel:

  • 3 pin XLR connector for DMX-512 output
  • Polarity switch to accommodate different types of cable requirements
  • MIDI In & Out
  • Audio input
  • RS232 port for trackball or pc connection
  • Power input: 120V DC 9V power supply included
  • Dimensions: 19” x 5.25” x 4.75” - Standard 19” rack mount, 3 rack spaces
  • Weight: 7 lbs.
