Radio Design Labs FP-AVDA4
Audio/Video Distribution Amplifier

OUR PART #:  FP-AVDA4

Radio Design Labs' FP-AVDA4 is the perfect choice in applications where consumer format audio and video signals need to be distributed simultaneously.
Learn More
Our Price: $272.71
List Price: $364.79
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Radio Design Labs FP-AVDA4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

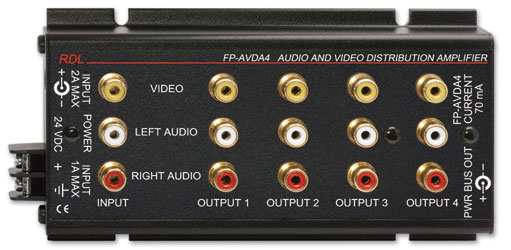

Radio Design Labs' FP-AVDA4 is the perfect choice in applications where consumer format audio and video signals need to be distributed simultaneously. Audio and video inputs and outputs are made on the top panel phono jacks. The FP-AVDA4 has a single 75 O input phono jack for the video signal and two phono jacks for the left and right audio inputs. Four source-terminated, 75 O video outputs are provided on the video output phono jacks. Four stereo audio outputs are provided on phono jack pairs located adjacent to the corresponding video output. Unused outputs need not be terminated. Audio and video outputs are at unity gain.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Features:

  • Consumer Audio/Video Distribution
  • Four Outputs (Video + Stereo Audio)
  • Professional Quality Performance
  • 75 O Video Input/Outputs
  • Unbalanced Audio Input/Outputs
  • Wideband Video – Flat to 10 MHz
  • Ultra-Compact All Metal Construction

Video Specifications:

  • Input: Phono jack, 1 V p-p
  • Input Impedance: 75 Ohm
  • Gain: Unity
  • Outputs (4): Phono jack
  • Output Level: 1 V p-p (into 75 Ohms)
  • Frequency Response: 10 Hz to 10 MHz (+/- 0.2 dB)
  • Noise: < -75 dB (below 1 V p-p)
  • Output Isolation: > 45 dB
  • Differential Gain: 0.1%
  • Differential Phase: 0.1 degree (measured at 10% and 90% APL)

Audio Specifications:

  • Inputs (2): Phono jacks (stereo), -10 dBV Unbalanced
  • Input Impedance: 10 kOhm, bridging
  • Gain: Unity
  • Outputs (8): Phono jacks (4 stereo)
  • Output Impedance: 150 Ohm drives 10 kOhm lines
  • Frequency Response: 20 Hz to 40 kHz (+/- 0.25 dB)
  • THD+N: < 0.05%; typ. 0.01% (1 kHz)
  • IMD: < 0.02%
  • Output Level: -10 dBV
  • Headroom: > 18 dB
  • Noise: < -85 dB below –10 dBV
  • Crosstalk:
    Better than 75 dB (20 Hz to 20 kHz);
    typ < -90 dB (1 kHz)
  • Power Requirement: GROUND-REFERENCED, 24 Vdc @ 60 mA
  • Dimensions: 1.2" H x 3.25" W x 6.41" L (3.05 x 8.26 x 16.28 cm)
