Quam 8C10FEPAX
8" Coaxial Loudspeaker


Our Price: $23.77
Buy 12 @ $14.26 ea.
Buy 24 @ $13.30 ea.
Buy 36 @ $12.36 ea.
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

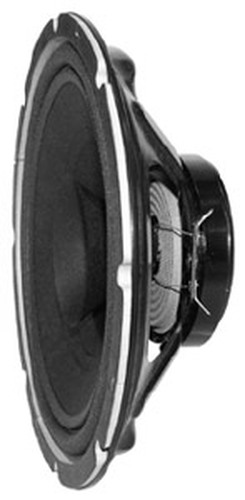

The Quam 8C10FEPAX is an 8” frame, 8 Ohm loudspeaker with urethane foam surround and concentric mount hard fiber HF cone. Finish: Black baked epoxy hybrid.

Intended Use
Wide frequency response replacement loudspeaker or combined with recommended Quam components to form a complete loudspeaker system; indoor environment

Program Material
Signal tones, voice and music


  • Speaker Size: 8” Frame
  • Average Sensitivity: 97 dB SPL, 1W / 1M
  • Power Rating: 20W RMS, EIA 426A Standard
  • Calculated Output: 110 dB SPL, 20W / 1M
  • Frequency Response: 40 Hz - 18 kHz EIA 426A Standard
  • Nominal Coverage Angle: 90° Included Angle, -6 dB / 2 kHz, Half Space
  • Mounting: 4x 3/8” Holes Spaced 90° Apart on 7-5/8” Circle
  • Audio Connection: 0.205” Spade Lug
