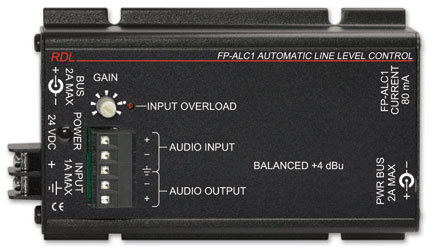

Radio Design Labs FP-ALC1
Single-Channel Mono Automatic Level Control

OUR PART #:  FPALC1

Radio Design Labs' FP-ALC1 is the ideal choice in many applications where consistent mono audio levels are needed from professional sources with varying audio output levels.
Learn More
Our Price: $229.06
List Price: $306.41
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs FP-ALC1
Qty:
In Stock

Similar Products
Radio Design Labs' FP-ALC1 is the ideal choice in many applications where consistent mono audio levels are needed from professional sources with varying audio output levels. Power connections are made using either the full-size barrier block or a dc power jack located in one end panel.

The FP-ALC1 is a single channel (mono) module featuring a detachable terminal block for the input and output. A single user adjustment makes installation simple and efficient. The gain adjustment is set as high as possible with the loudest source without the INPUT OVERLOAD indicator flashing. No further adjustments are needed. Sound systems fed from variable audio source levels, such as multiple CD changers, satellite receivers or paging sources benefit from consistent levels.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Common FP-ALC1 applications include paging outputs from telephone systems, music-on-hold feeds for telephone systems, background or foreground amplifier inputs in sound systems, voice feeds in communications/intercom systems.

Features:

  • Consistent Levels from Variable Sources
  • Split-Band AGC for Audio Transparency
  • Self-Adjusting Attack and Release Times
  • AGC with Simple Single-Control Setup
  • Level Control Range > 20 dB
  • Gated Control to Avoid Level Seeking

Specifications:

  • Input: 10 kOhm balanced bridging (may be connected unbalanced)
  • Input Level: +4 dBu (nominal)
  • Output: 150 Ohm balanced (may be connected unbalanced)
  • Output Level: +4 dBu
  • Automatic Level Range: -16 to +14 dBu
  • Gate Threshold: -18 dBu (20 Hz to 3 kHz)
  • Frequency Response (excluding AGC): 20 Hz to 20 kHz (+/- 0.75 dB)
  • THD+N (excluding AGC):   < 0.15% (20 Hz to 20 kHz)
  • Noise: < -90 dB (below +4 dBu output)
  • Headroom: > 18 dB
  • Indicator (1): INPUT OVERLOAD
  • Power Requirement: GROUND-REFERENCED, 24 Vdc @ 80 mA
  • Dimensions: 1.42" H x 3.25" W x 5.75" H (3.61 x 8.26 x 14.61 cm)
