Electro-Voice EVI-28MB-BLK Mounting U-Bracket for EVI-28, Black

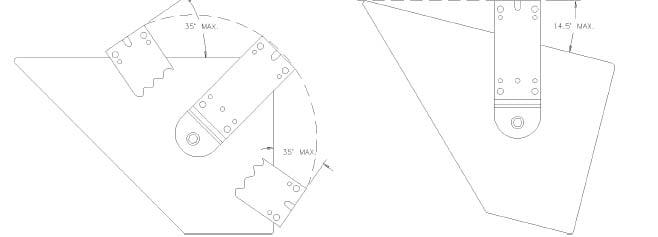

For the EVI-28, the mounting holes are positioned very near the center of gravity for easy aiming. The U-brackets may be rotated all the way around the back of the enclosure, allowing easy installation and aiming. The maximum vertical angle that may be reached is approximately 35°, less if the loudspeaker is mounted flush against a ceiling. In this case, the enclosure may be rotated upwards by at least 15°, more than sufficient for nearly any application (see Figure 15). The brackets are supplied with friction washers that will prevent the enclosure from rotating over time, but to be absolutely certain, the installer should use a set screw in the threaded hole to fix the enclosure permanently in position. The described hanging methods are rated for suspending only one speaker (with a minimum of an 8:1 safety factor). Hanging any additional weight from the speaker will exceed its strength rating and create an unsafe condition.
