EAW JF60Z 2-Way Full Range 200W Speaker, Black

OUR PART #: JF60Z-BLACK MFR #: 0012618-90

Copied to clipboard

The JF60 is a 2-way full range system (passive LF/HF crossover) in a vented trapezoidal enclosure. Includes a 6.5" woofer and a 1.3 in tweeter on a Wave Guide Plate™. ...Read more

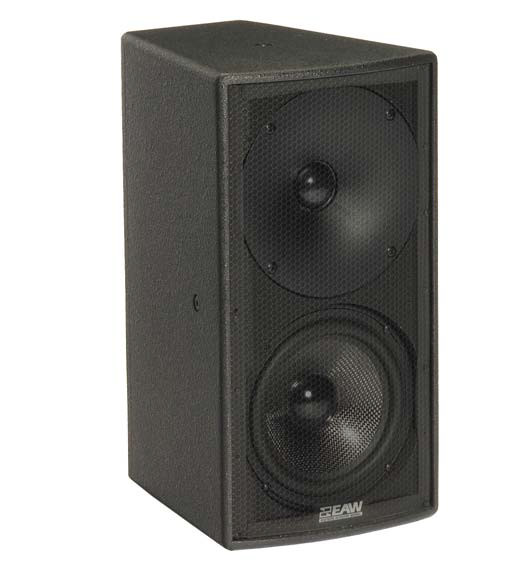

EAW JF60Z 2-Way Full Range 200W Speaker, Black Image 1
EAW JF60Z 2-Way Full Range 200W Speaker, Black
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The JF60 is a 2-way full range system (passive LF/HF crossover) in a vented trapezoidal enclosure. Includes a 6.5" woofer and a 1.3 in tweeter on a Wave Guide Plate™.

The JF60 is engineered for exceptional performance in the nearfield from a compact enclosure. Surprisingly high output, exceptional fidelity. Very effective as a fill/delay elements in larger overall systems or for foreground/background music reproduction.

Features

  • Ultra-compact passive 2-way system
  • 6.5" LF/33mm tweeter
  • High impact, high definition sound
  • For portable use or permanent installation

Specifications

  • Frequency Response: 84 Hz to 18 kHz
  • Recommended High-Pass Frequency: 70 Hz, 24 dB/octave
  • Axial Sensitivity (Full Range Passive): 90
  • Nominal Input Impedance (Full Range Passive): 5 ohms
  • Power Handling (Full Range Passive): 200 Watts,continuous
  • Calculated SPL Limit: 119 dB (passive peak); 113 dB(long term)
  • Nominal Dispersion: 110 degrees, conical
  • System Configuration: 2-way, full range
  • LF Subsystem & Loading: One 6.5" cone, sealed
  • HF Subsystem & Loading: one 1.3" soft dome tweeteron WGP
  • Operating Mode: Passive only
  • Enclosure Material: Exterior grade Baltic birch plywood
  • Finish: Wear resistant textured black paint
  • Connector: One Neutrik NL4 Speakon, One 2-contactbarrier strip
  • Suspension Hardware: Two 1/4-20 mounting/suspension points; Four 5/16-18 mounting points (Omnimount 75 or similar); Two 5/16-18mounting points (stand adapter)
  • Grille: Powder coated perforated steel
  • Optional Accessories: 1/4-20 forged shoulder eyebolt
  • Dimensions (H x W x Rear W x D): 14.63" x 7.81" x4.75" x 9.75"
  • Trapezoid Angle: 9.5 degrees per side
  • Weight: 17 lbs (net); 19.5 lbs (shipping)
