Radio Design Labs FP-VDA4
Video Distribution Amplifier


Our Price: $206.36
List Price: $276.04
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

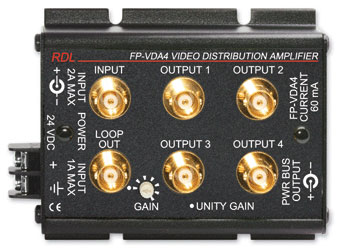

Radio Design Labs' FP-VDA4 is the ideal choice in many applications where video signals need to be distributed. Video input and output connections are made on the top panel BNC jacks. Power connections are made using either the full-size barrier block terminals or a dc power jack located in one end panel. A second dc power jack is provided on the other end panel for connecting additional FLAT-PAK modules.

The FP-VDA4 has two jacks in the bridging input stage. One jack is for the input signal; the other is a loop-through output of the source signal. If 75 Ohms termination of the input signal is required, the terminator (provided) is plugged onto the Loop Out jack. Gain is user adjustable from the top panel. The gain potentiometer allows adjustment from unity to +6 dB. Four source-terminated outputs are provided through the BNC output jacks. Unused outputs need not be terminated.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.


  • Video Distribution with Four Outputs
  • Adjustable Gain
  • Input LOOP OUT Jack
  • Wide Bandwidth – Flat to 10 MHz
  • NTSC or PAL Operation
  • Ultra-Compact All Metal Construction
  • Convenience of RDL® FLAT-PAKs™


  • Input Impedance: 1 kOhm (Bridging 75 Ohm Line)
  • Gain: Unity to +6 dB (adjustable)
  • Load Impedance: 75 Ohm
  • Outputs (5): 1 LOOP OUT from Input Signal; 4 amplified outputs
  • Output Level: 1 V p-p (into 75 Ohm)
  • Frequency Response: 10 Hz to 10 MHz (+/- 0.2 dB)
  • Noise: < -75 dB (below 1 V p-p)
  • Output Isolation: > 45 dB
  • Differential Gain: 0.1%
  • Differential Phase: 0.1 degree (measured at 10% and 90% APL)
  • Connector Type: BNC
  • Power Requirement: GROUND-REFERENCED, 24 Vdc @ 60 mA
  • Dimensions: 1.34" H x 3.25" W x 4.43" L (3.40 x 8.26 x 11.25 cm)
