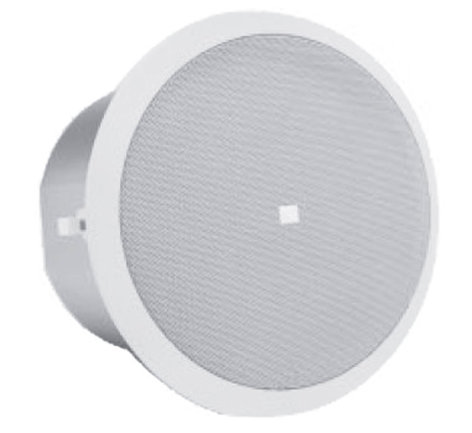

JBL Control 19CS
8" Ceiling Subwoofer

OUR PART #:  CONTROL-19CS

JBL's Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.
Learn More
Our Price: $211.00
List Price: $263.55
You save 20%!

This product must be purchased in multiples of 2

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL Control 19CS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

JBL's Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design. The Control 19CS is perfectly suited to augment the low frequency output of any of the Control Contractor loudspeakers. High power handling and low distortion make the Control 19CS an ideal addition for sound systems requiring a higher fidelity sound from ceiling loudspeakers.

The unique Nested Chamber design delivers high output from a compact enclosure, while the acoustic lowpass character of this design means it is easy to augment a full-range sound system without an external crossover or separate amp channel. The Linear DynamicsTM port design originally developed for JBL’s concert speaker systems, produces extended deep bass output.

The Control 19CS is protected from overload damage by JBL’s exclusive SonicGuard circuitry, a protection system that is inaudible to the listener, ensuring reliability while providing full-fidelity sound. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.

The 200 mm (8") transducer features a pure butyl rubber surround for extended life and long excursion capability. The pole piece is vented for low distortion.

The Control 19CS can be connected into a system in a number of configurations: In parallel with full-range speakers resulting in a bass-overlap configuration (which is often acceptable); with an electronic crossover and separate amplifier channel, or; In conjunction with an active or passive high-pass filter on the full-range speakers, thus taking advantage of the Control 19CS’s natural acoustic lowpass character.

JBL Control 19CS Features:

  • Unique Nested Chamber design and Linear Dynamic ApertureTM port designd elivers high output from a compact enclosure
  • BL’s exclusive SonicGuard overload  protection allows higher operational levels and improved system reliability (19CS only)
  • Component: Long excursion 200 mm (8") driver
  • Packaged with grille, backcan and tile rails for fast installation and easy stocking
  • Simple installation and wire connection method

JBL Control 19CS Specifications:

System:

  • Freq. Range (-10 dB)(*1): 42 Hz - 200 Hz
  • Power Capacity(*2):
    • 200 Watts Continuous Program Power
    • 100 Watts Continuous Pink Noise
  • Nominal Sensitivity(*3): 95 dB SPL, 1W @ 1 m (3.3 ft) in ceiling near corner (PI/2) 89 dB SPL, 1W @ 1 m (3.3 ft) in center of ceiling (2PI)
  • Nominal Coverage Angle: 180° conical coverage
  • Rated Maximum SPL3: 115 dB @ 1 m (3.3 ft) in ceiling near corner (PI/2)
  • Nominal Impedance: 8 ohms

Transducer:

  • Low-Frequency:
    8.0" Polypropelene cone.
    1.5" coil on aluminum former

Physical:

  • Enclosure: Backcan: Formed steel
  • Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
  • Overload Protection: Full-range power limiting to protect network and transducers.
  • Termination: Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5mm2)
  • Safety Agency Rating: Suitable for use in air handling spaces per UL1480,UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849
  • Dimensions (H x Dia): 13.6" x 13.6": 12.5" front of ceiling tile to back of backcan
  • Cutout Size: 12"
  • Net Weight (each): 12 lbs

Included Accessories:

  • C-shaped support backing plate
  • 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)
  • Cutout template
  • Paint shield
  • Removable locking wiring connector

(*1) Mounted in ceiling near corner (PI/2 loading)

(*2)Continuous Pink Noise rating is shaped pink noise, 40 Hz to 400 Hz, with a 6 dB crest factor for 100 hours continuously. Continuous Program power is a conservative expression of the system’s ability to handle normal speech and music program material and is defined as 3 dB above the Continuous Pink Noise Rating.

(*3)Average 60 Hz to 100 Hz.
