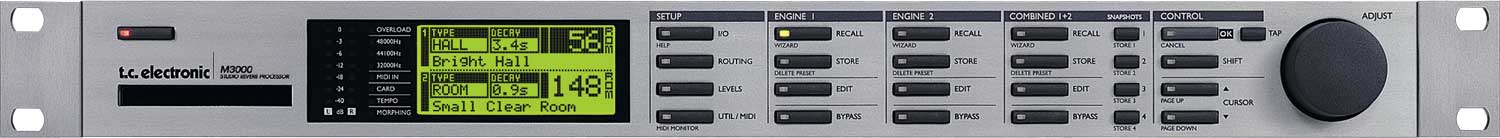

TC Electronic M3000
Studio Reverb Processor

OUR PART #  M3000

Our Price: $1,335.99
List Price: $2,003.99
You save 33%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The VSS™3-reverb technology inherent in the M3000 is setting an industry standard. The M3000 is the best sounding, most versatile and easiest to use professional reverb today for music and film/post applications. Combining ultimate control of directivity in the early reflections with a transparent and harmonically magnificent diffused field, the art of reverberation is brought to a new and higher level.

The M3000 enables you to add the softest and cleanest ambience you have ever heard to your work. Furthermore the processor boasts a wide range of tools and presets to give you the exact vintage or post production reverb you are looking for.

Dual-engine structure enabling two simultaneous reverbs or effects, award winning intuitive user-interface, 600 factory presets and multiple I/O formats, makes M3000 the best reverb choice for high-end music- and film/post-production.

Features
  • Recall
  • Wizard
  • Edit
  • Store
  • Input & Output
  • Routing
  • Tap Tempo
  • Dynamic Morphing
  • More Algorithms

Specifications:

Digital Inputs and Outputs

  • Connectors: XLR (AES/EBU), RCA Phono (S/PDIF), Optical (Tos-link, ADAT)
  • Formats: AES/EBU (24 bit), S/PDIF (24 bit), EIAJ CP-340, IEC 958, EIAJ Optical (Tos-link), ADAT Lite pipe
  • Output Dither: HPF TPDF dither 8 to 24 bit
  • Sample Rates: 44.1 kHz, 48 kHz
  • Processing Delay: 0.2ms @ 48 kHz
  • Frequency Response DIO: 20 Hz to 23.9 kHz ± 0.01/-0.1 dB @ 48 kHz

Analog Inputs

  • Connectors: XLR balanced (pin 2 hot)
  • Impedance: 20 kohm
  • Max. Input Level: +22 dBu (balanced)
  • Min. Input Level (for 0 dBFS): -10 dBu
  • Sensitivity: @ 12 dB headroom: -22 dBu to +10 dBu
  • A to D Conversion: 24 bit (1 bit, 128 times oversampling)
  • A to D Delay: 0.8 ms @ 48 kHz
  • Dynamic Range: >103 dB (unweighted), >106 dB (A)
  • THD: -95 dB (0,0018 %) @ 1kHz, -6 dBFS (FS @ +16 dBu)
  • Frequency Response: 10 Hz to 20 kHz: +0/-0.2 dB
  • Crosstalk: <-80 dB, 10 Hz to 20 kHz, typical -100 dB @ 1 kHz

Analog Outputs

  • Connectors: XLR balanced (pin 2 hot)
  • Impedance: 100 ohm (active transformer)
  • Max. Output Level: +22 dBu (balanced)
  • Full Scale Output Range: -10 dBu to +22 dBu
  • D to A Conversion: 24 bit (1bit, 128 times oversampling)
  • D to A Delay: 0.57 ms @ 48 kHz
  • Dynamic Range: >100 dB (unweighted), >104 dB(A)
  • THD: -86 dB (0.005 %) @ 1 kHz, -6 dBFS (FS @ +16 dBu)
  • Frequency Response: 10 Hz to 20 kHz: +0/-0.5 dB
  • Crosstalk: <-60 dB, 10 Hz to 20 kHz, typical -90 dB @ 1 kHz

EMC

  • Complies with: EN 55103-1 and EN 55103-2. FCC part 15, Class B. CISPR 22, Class B

Safety

  • Certified to: IEC 65, EN 60065, UL 1419, CSA E65

Environment

  • Operating Temperature: 32° F to 122° F (0° C to 50°C)
  • Storage Temperature: -22° F to 167° F (-30° C to 70°C)
  • Humidity: Max. 90% non-condensing

PCMCIA Interface

  • Connector: PC card, 68 pin type 1 cards
  • Standards: PCMCIA 2.0, JEIDA 4.0
  • Card Format: Supports up to 2 MB SRAM

Control Interface

  • MIDI: In/Out/Thru: 5 Pin DIN
  • GPI, Pedal, Fader: 1/4" phone jack, 0 ohm to 50 kohm

General

  • Finish: Anodized aluminum front. Plated and painted steel chassis.
  • Dimensions: 19" x 1.75" x 8.2" (483 x 44 x 208 mm)
  • Weight: 5.2 lb. (2.35 kg)
  • Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
  • Power Consumption: <20W
  • Backup Battery Life: >10 years

TC Electronic M3000
Studio Reverb Processor

OUR PART #  M3000

Product Information:

The VSS™3-reverb technology inherent in the M3000 is setting an industry standard. The M3000 is the best sounding, most versatile and easiest to use professional reverb today for music and film/post applications. Combining ultimate control of directivity in the early reflections with a transparent and harmonically magnificent diffused field, the art of reverberation is brought to a new and higher level.

The M3000 enables you to add the softest and cleanest ambience you have ever heard to your work. Furthermore the processor boasts a wide range of tools and presets to give you the exact vintage or post production reverb you are looking for.

Dual-engine structure enabling two simultaneous reverbs or effects, award winning intuitive user-interface, 600 factory presets and multiple I/O formats, makes M3000 the best reverb choice for high-end music- and film/post-production.

Features
  • Recall
  • Wizard
  • Edit
  • Store
  • Input & Output
  • Routing
  • Tap Tempo
  • Dynamic Morphing
  • More Algorithms

Specifications:

Digital Inputs and Outputs

  • Connectors: XLR (AES/EBU), RCA Phono (S/PDIF), Optical (Tos-link, ADAT)
  • Formats: AES/EBU (24 bit), S/PDIF (24 bit), EIAJ CP-340, IEC 958, EIAJ Optical (Tos-link), ADAT Lite pipe
  • Output Dither: HPF TPDF dither 8 to 24 bit
  • Sample Rates: 44.1 kHz, 48 kHz
  • Processing Delay: 0.2ms @ 48 kHz
  • Frequency Response DIO: 20 Hz to 23.9 kHz ± 0.01/-0.1 dB @ 48 kHz

Analog Inputs

  • Connectors: XLR balanced (pin 2 hot)
  • Impedance: 20 kohm
  • Max. Input Level: +22 dBu (balanced)
  • Min. Input Level (for 0 dBFS): -10 dBu
  • Sensitivity: @ 12 dB headroom: -22 dBu to +10 dBu
  • A to D Conversion: 24 bit (1 bit, 128 times oversampling)
  • A to D Delay: 0.8 ms @ 48 kHz
  • Dynamic Range: >103 dB (unweighted), >106 dB (A)
  • THD: -95 dB (0,0018 %) @ 1kHz, -6 dBFS (FS @ +16 dBu)
  • Frequency Response: 10 Hz to 20 kHz: +0/-0.2 dB
  • Crosstalk: <-80 dB, 10 Hz to 20 kHz, typical -100 dB @ 1 kHz

Analog Outputs

  • Connectors: XLR balanced (pin 2 hot)
  • Impedance: 100 ohm (active transformer)
  • Max. Output Level: +22 dBu (balanced)
  • Full Scale Output Range: -10 dBu to +22 dBu
  • D to A Conversion: 24 bit (1bit, 128 times oversampling)
  • D to A Delay: 0.57 ms @ 48 kHz
  • Dynamic Range: >100 dB (unweighted), >104 dB(A)
  • THD: -86 dB (0.005 %) @ 1 kHz, -6 dBFS (FS @ +16 dBu)
  • Frequency Response: 10 Hz to 20 kHz: +0/-0.5 dB
  • Crosstalk: <-60 dB, 10 Hz to 20 kHz, typical -90 dB @ 1 kHz

EMC

  • Complies with: EN 55103-1 and EN 55103-2. FCC part 15, Class B. CISPR 22, Class B

Safety

  • Certified to: IEC 65, EN 60065, UL 1419, CSA E65

Environment

  • Operating Temperature: 32° F to 122° F (0° C to 50°C)
  • Storage Temperature: -22° F to 167° F (-30° C to 70°C)
  • Humidity: Max. 90% non-condensing

PCMCIA Interface

  • Connector: PC card, 68 pin type 1 cards
  • Standards: PCMCIA 2.0, JEIDA 4.0
  • Card Format: Supports up to 2 MB SRAM

Control Interface

  • MIDI: In/Out/Thru: 5 Pin DIN
  • GPI, Pedal, Fader: 1/4" phone jack, 0 ohm to 50 kohm

General

  • Finish: Anodized aluminum front. Plated and painted steel chassis.
  • Dimensions: 19" x 1.75" x 8.2" (483 x 44 x 208 mm)
  • Weight: 5.2 lb. (2.35 kg)
  • Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
  • Power Consumption: <20W
  • Backup Battery Life: >10 years
