Belden 9452 010U500
500ft High Conductivity Copper, Two-Conductor, Low-Impedance Mic-Music Instrument Cable

OUR PART #:  9452-U500

Belden's 9452 010U500, part of Belden's Brilliance® Broadcast Cable line, is a 500-foot segment of 24 AWG stranded (19x36) HC TC conductors...
Learn More
Our Price: $337.35
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Belden 9452 010U500
Qty:
In Stock

Similar Products

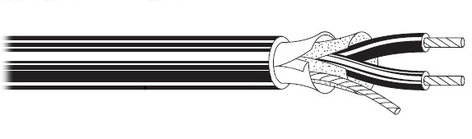

Belden's 9452 010U500, part of Belden's Brilliance® Broadcast Cable line, is a 500-foot segment of 24 AWG stranded (19x36) HC TC conductors, high-density polyethylene insulation, twisted pair, noise reducing tape, Beldfoil® shield (100% coverage), 24 AWG stranded TC drain wire with a PVC jacket.

Belden 9452 010U500 Specifications:

Physical Characteristics (Overall):

Conductor

  • AWG:
    • # Conductors/AWG:  2/24
    • Stranding Conductor Material Dia. (in.):  19x36 High Conductivity TC - Tinned Copper .024
    • Total Number of Conductors:  2

Insulation

  • Insulation Material:  HDPE - High Density Polyethylene
  • Insulation Material Wall Thickness/Dia.:   .008" (0.2032mm)/.040" (1.016mm)

Outer Shield

  • Outer Shield Material:
    Layer # / Outer Shield Trade Name:
    • 1 / --
    • 2 / Beldfoil®
  •  Layer # / Type Outer Shield Material Coverage (%)
    • 1 / Tape Noise Reducing 100
    • 2 / Tape Aluminum Foil-Polyester Tape 100
  • Outer Shield Drain Wire AWG:  24 Stranded
    AWG Stranding Drain Wire Conductor Material:  TC - Tinned Copper

Outer Jacket

  • Outer Jacket Material:  PVC - Polyvinyl Chloride

Overall Cable

  • Overall Nominal Diameter: 0.135" (3.429mm)
  • Overall Weight:  6.5 lbs. (2.7kg)
  • Color Code:  Black, Red

Mechanical Characteristics (Overall):

  • Operating Temperature Range:  -40°C To +75°C
  • Non-UL Temperature Rating:  75°C
  • Bulk Cable Weight:  11 lbs./1000 ft. (16.370 Kg/Km)
  • Max. Recommended Pulling Tension:  17.700 lbs. (78.733 N)
  • Min. Bend Radius/Minor Axis:  1.500 in. (38.100 mm)

Applicable Specifications and Agency Compliance (Overall):

Applicable Standards & Environmental Programs

  • EU Directive 2011/65/EU (ROHS II):  Yes
  • EU CE Mark:  Yes
  • EU Directive 2000/53/EC (ELV):  Yes
  • EU Directive 2002/95/EC (RoHS):  Yes
  • EU RoHS Compliance Date (mm/dd/yyyy):  01/01/2004
  • EU Directive 2002/96/EC (WEEE):  Yes
  • EU Directive 2003/11/EC (BFR):  Yes
  • CA Prop 65 (CJ for Wire & Cable):  Yes
  • MII Order #39 (China RoHS):  Yes
  • Plenum/Non-Plenum
    • Plenum (Y/N):  No

Electrical Characteristics (Overall)

  • Nom. Characteristic Impedance
    • Impedance (Ohm):  56
  • Nom. Inductance:
    • Inductance:  .18 µH/ft (0.59058 µH/m)
  • Nom. Capacitance Conductor to Conductor:
    • Capacitance:  30 pF/ft (98.43 pF/m)
  • Nom. Capacitance Cond. to Other Conductor & Shield:
    • Capacitance:  58 pF/ft (190.298 pF/m)
  • Nom. Conductor DC Resistance:
    • DCR @ 20°C:  25 Ohm/1000 ft (82.025 Ohm/km)
  • Nominal Outer Shield DC Resistance:
    • DCR @ 20°C:  16.5 Ohm/1000 ft (54.1365 Ohm/km)
  • Max. Operating Voltage - Non-UL:  200 V RMS
  • Max. Recommended Current:  2.2 Amps per conductor @ 25°C
  • Put Up and Color:  500 FT 6.500 LB BLACK 2 #24 PE SHLD PVC

Information and specifications described herein are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability.
