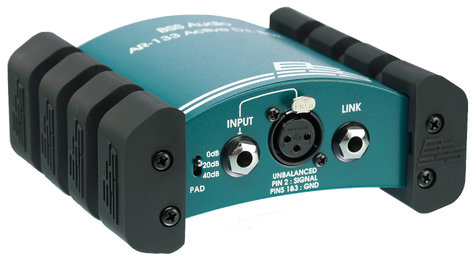

BSS Audio AR-133
Active DI box, AR133

OUR PART #:  AR133

With added functionality and enhanced audio performance, the AR-133 has been designed to be more affordable for musicians, studios and PA companies.
Learn More
Our Price: $195.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

BSS Audio AR-133
Qty:
In Stock

Similar Products
With added functionality and enhanced audio performance, the AR-133 has been designed to be more affordable for musicians, studios and PA companies.  The unit includes phantom power and battery supplies as standard. Should the phantom power from the console fail or be accidentally switched off, the AR-133 automatically switches over to the internal 9V battery providing uninterrupted use.  The unit is housed in a rugged aluminium extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look.

Input connectors are both 1/4" jack sockets and an XLR socket, the latter meaning that the AR-133 can be used to convert unbalanced signals to a balanced output on XLRs throughout.  The arched case allows cables to run back underneath the unit from the end for neat cable management.  Input attenuation is 0, -20 or -40dB, making the box suitable for instrument,  line or amplifier levels on inputs. On the output side, a ground-lift switch is provided for quick solutions to ground-loop problems.

The AR-133 uses an enhanced version of the same audio path as the AR-116, now regarded by many people as a reference standard. The sound quality is legendary, particularly on acoustic and bass guitars.  Numerous applications can be satisfied by the AR-133. For example, as well as the traditional guitar use, the AR-133 can be used with keyboards, DJ consoles, amplifier outputs, and other electronic sources.  An additional bonus is the ability to use the AR-133 as an active balancing device.

BSS Audio AR-133 Features:

  • Switchable input attenuation
    • 0dB for guitar-type pickups
    • -20dB for line level signals
    • -40dB for speaker feeds
  • Matches the level and impedance with unity gain without loading the source
  • Can drive signals up long cable lengths
  • Powered from console phantom power or internal battery
  • Automatic switchover to battery if phantom power fails
  • Parallel Link Jack output to feed amplifiers directly
  • Parallel XLR input for converting unbalanced outputs to balanced lines

    BSS Audio AR-133 Specifications:

    • Input Section:
      • Input Impedance:
        • 1 Megohm (pad at 0dB)
        • 47k Ohms (pad at -20dB)
        • 47k Ohm (pad at -20dB)
      • Max Input Level:
        • +9dBu (pad at 0dB)
        • +29dBu (pad at -20dB)
        • +49dBu (pad at -40dB)
      • Connectors: Two parallel 1/4" jack connectors and a parallel XLR connector (unbalanced)
        • Jack: Tip Hot (+ve), Sleeve Ground
        • XLR: Pin 2 Hot (+ve), Pin 1 & 3 Ground
    • Output Section:
      • Output: Transformer Balanced
      • Max. Output Level: +8dBu into 600 ohms or greater
      • Connector: XLR3-32 or equivalent
    • System Performance:
      • Distortion (THD): <0.005% at 1 kHz, 0dBu output
      • Noise: <-105dB unweighted, 22 Hz - 22 kHz, rms
      • Frequency Response: 30 Hz - 20 kHz, +0dB/-1dB
    • General:
      • Main/Standby: 9 volt PP3 type, battery preferably alkaline
      • Current drain
        • Phantom: less than 7.5mA
        • Battery: less than 2mA
      • Phantom Power: +20 to +48 V DC
      • Weight: 650 grams, excluding batteries
      • Overall Dimensions: 2.3" x 4.9" x 5.6" (59 x 124 x 143mm)
