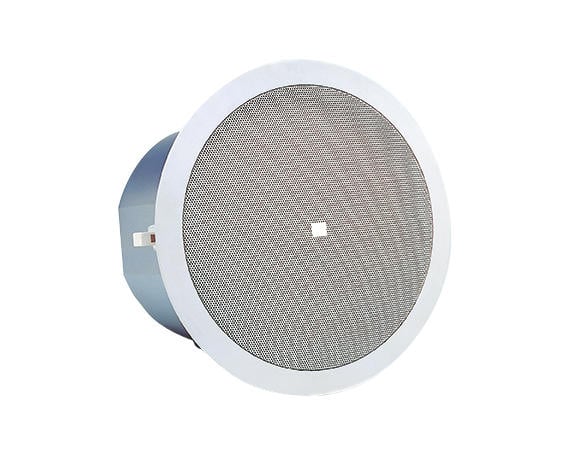

JBL Control 26C
6.5" 2 Way Ceiling Speaker

OUR PART #:  CONTROL-26C

The JBL Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter...
Learn More
Our Price: $139.00
List Price: $174.30
You save 20%!
Write the first review.

This product must be purchased in multiples of 2

JBL Control 26C
Qty:
In Stock
Related Products

The JBL Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.

JBL Control 26C Features:

  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
  • High power, wide frequency response and low distortion for high sound level capability.
  • JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
  • Packaged with grille, backcan and tile rails for fast installation andeasy dealer stocking.

JBL Control 26C Specifications:

  • Frequency Range: 75 Hz - 20 kHz
  • Power Capacity: 150 W Continuous Program Power; 75 W Continuous Pink Noise
  • Nominal Sensitivity: 89 dB, 1m/1 W
  • Nominal Coverage Angle: 110°
  • Directivity Index (DI): 4.6 averaged 500 Hz to 4 KHz
  • Nominal Impedance: 16 ohms
  • Rated Maximum SPL: 107 dB SPL @ 1m (3.3 ft)
  • Low Frequency: 165 mm (6.5 in)
  • High Frequency: 19 mm (.75 in) titanium
  • Terminations: Screw locking barrier strip
  • Dimensions (H x Dia): 210 mm x 252 mm (8.3 in x 9.9in)
  • Net Weight (ea): 2.7 kg (6 lbs)
