Quam 8C10PAOTB
Loudspeaker, 8", 8 Ohm, Moisture Resistant

OUR PART #  8C10PAOTB

Our Price: $26.89
Buy 12 @ $16.14 ea.
Buy 24 @ $15.05 ea.
Buy 36 @ $13.98 ea.
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

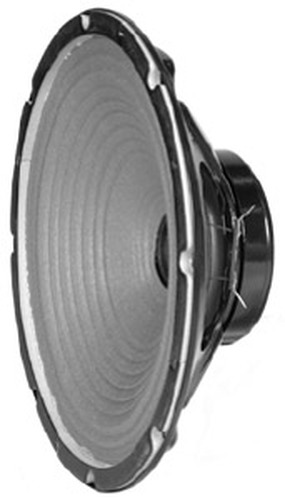

The Quam 8C10PAOT is an 8” frame, 8 Ohm loudspeaker with phenolic resin impregnated cone. Finish: Black baked epoxy hybrid.

Intended Use
Moisture resistant, replacement loudspeaker or combined with recommended Quam components to form a complete loudspeaker system; outdoor or indoor environment

Program Material
Signal tones, voice and music

Specifications:

  • Speaker Size: 8” frame
  • Average Sensitivity: 94 dB SPL, 1W/ 1M
  • Power Rating: 20W RMS, EIA 426A Standard
  • Calculated Output: 105dB SPL, 10W/ 1M
  • Magnet Type, Weight: BeFe Ceramic, 10 oz. Nominal
  • Frequency Response: 80Hz - 8 kHz EIA 462A Standard
  • Nominal Coverage Angle: 100Β° Included Angle, -6 dB / 2 kHz, Half space
  • Mounting: 8x 1/4” holes spaced 45Β° apart on 7-5/8” circle
  • Audio Connection: 0.205” Spade lug

Click to download

Quam 8C10PAOTB
Loudspeaker, 8", 8 Ohm, Moisture Resistant

OUR PART #  8C10PAOTB

Product Information:

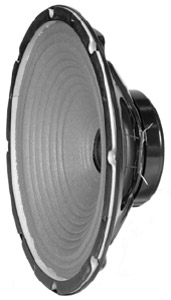

The Quam 8C10PAOT is an 8” frame, 8 Ohm loudspeaker with phenolic resin impregnated cone. Finish: Black baked epoxy hybrid.

Intended Use
Moisture resistant, replacement loudspeaker or combined with recommended Quam components to form a complete loudspeaker system; outdoor or indoor environment

Program Material
Signal tones, voice and music

Specifications:

  • Speaker Size: 8” frame
  • Average Sensitivity: 94 dB SPL, 1W/ 1M
  • Power Rating: 20W RMS, EIA 426A Standard
  • Calculated Output: 105dB SPL, 10W/ 1M
  • Magnet Type, Weight: BeFe Ceramic, 10 oz. Nominal
  • Frequency Response: 80Hz - 8 kHz EIA 462A Standard
  • Nominal Coverage Angle: 100Β° Included Angle, -6 dB / 2 kHz, Half space
  • Mounting: 8x 1/4” holes spaced 45Β° apart on 7-5/8” circle
  • Audio Connection: 0.205” Spade lug

Click to download
