Studio Technologies Model 22
IFB Plus Access Station


Our Price: $203.36
List Price: $205.00
(Low Price Guarantee)
In Stock

Recommended Accessories

While the Model 2 Central Controller can be used completely "stand-alone," the Model 22 Access Station can be used to provide additional IFB origination locations. Model 22s are installed at positions convenient to producers, directors, or others who need to cue talent and related personnel. As many as four Model 22s can be used with each Model 2 Central Controller.

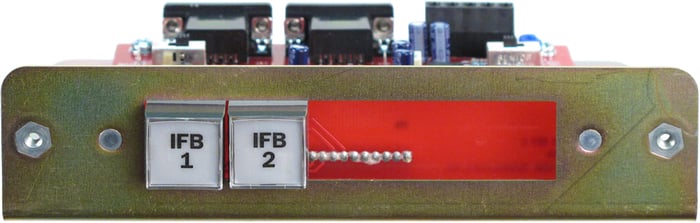

The Model 22 consists of a metal chassis containing two lighted pushbutton switches, microphone and line inputs, and status and control circuitry.

The mic input is configured for the connection of an electret gooseneck microphone. The line input, compatible with balanced and unbalanced signals, allows another piece of communications equipment to provide interrupt audio. This allows direct interfacing with intercom systems from companies such as Telex®/RTS® and Clear-Com®.

Several mounting options are available. One adapter allows the Model 22 to be mounted in a single rack space (as shown). A second adapter is used to install the Model 22 in a table or console opening.


  • Mounting: Rack mounted using Model 25A 19-inch Rack Adapter (purchased separately); panel mounted using Model 28A Panel Adapter (purchased separately).  Custom mounting easily accomplished.
  • Interconnection: two 9-pin D-sub miniature connectors (female), one intended to link Model 22 to Model 2 Central Controller, the second designed to allow "loop through" installation for connection to additional Model 22(s)
  • Interrupt Switches: 2
    • Type: back-lit, momentary, EAO99-series
    • Tactile Sensation: excellent
  • Audio Input: electret microphone or line level, switch-selectable
  • Microphone Input:
    • Compatibility: designed for use with Studio Technologies' Model 11A gooseneck microphone (purchased separately)
    • Connector: three terminals on screw terminal strip
  • Line Input:
    • Type: electronically balanced, capacitor coupled, compatible with balanced or unbalanced audio signals
    • Input Impedance: 24 kohms
    • Input Level: –15 to +10 dBu, adjustable via trim potentiometer
    • Connector: two terminals on screw terminal strip
  • Monitor Muting: switch selectable, allows Model 22 interrupt activity to mute monitor amplifier on Model 2 Central Controller
  • Power Requirements: +18 Vdc filtered and regulated, 25 mA maximum, provided by Model 2 Central Controller
  • Dimensions: 6.4" W x 21.6" H x 5.2" D (16.3 x 4.1 x 13.2 cm)
  • Weight: 0.8 lb (0.35 kg)
Gooseneck MicrophoneStudio Technologies MODEL-11A Gooseneck Microphone

Model 11A gooseneck microphone for the Model 22/24 access stations.(Shown with Model 22 station.)
