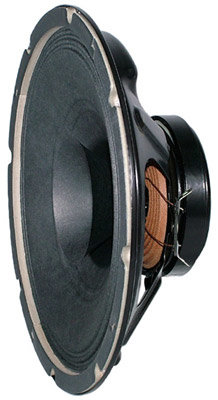

Quam 8C10PAX/TBL25B 8" Ceiling Speaker, 25V Transformer

This loudspeaker provides excellent performance and value for commercial background music, foreground music and distributed public address applications. It comes factory-assembled with a 25-volt transformer (TBL25).

Features:

• Metal parts are coated with baked hybrid epoxy for durability.
• Conservative power rating at published industry standard (EIA 426A)
• Pre-mounted transformer

Specifications:

• Speaker Size: 8"
• Power Rating: 18 Watts RMS (EIA 426A standard)
• Frequency Response: 60 Hz - 16 kHz
• Resonant Frequency: 90 Hz
• Nominal Impedance: 8 Ohms
• Magnet Type and Weight: Barrium Ferrite Ceramic: 26 kg
• Flux Density: 10,500 Gauss
• Average Sensitivity (1w/1m): 97 dB SPL
• Dispersion, -6 dB Down Pt. (Half Space @ 2 KHZ): 50 Degrees off axis
• Depth (Less Transformer): 3"
