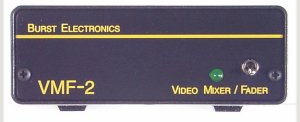

Burst Electronics VMF-2
2-Ch Video Mixer/Fader, with Fade to Black

OUR PART #:  VMF-2

The VMF-2 is a 2 channel mixer/fader. It will fade from A to B, B to A or A to Black. There is an auto mode that allows the transition to be preset from 0.2 seconds (approx.
Learn More
Our Price: $479.96
List Price: $495.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Burst Electronics VMF-2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VMF-2 is a 2 channel mixer/fader. It will fade from A to B, B to A or A to Black. There is an auto mode that allows the transition to be preset from 0.2 seconds (approx. 6 Frames) to 6 seconds. The transition occurs upon hitting the TAKE button or a GPI trigger. In the A to B mode, the sources must be genlocked. In the A to Black mode, no B input is required. The output is dc clamped to zero Volts. The VMF-2 is 12 Vdc powered, wall module included.

Specifications:

  • Input/Output: 1 Volt standard video
  • Input Impedance: HiZ or 75 Ohms 1%, looping (jumper/switch selected)
  • Output Impedance: 75 Ohms 1%
  • Video Connector: BNC, 4 pin MiniDIN for Y/C input
  • GPI Trigger: Contact closure initiates action
  • Output Protection: Open or Short, infinite duration
  • Black Output: Sync, Color Burst and 7.5 IRE setup (0 IRE PAL)
  • Bandwidth: 10 MHz @ 0.5 dB
  • Diff Gain: 0.1%
  • Diff Phase: 0.1 deg
  • S/N: 60 dB
  • Crosstalk: 60 dB
  • Size (Head End): 4.1 W x 5.5 D x 1.5 H inches
  • Size (RCU): 2.5 W x 6.0 D x 1.8 H inches
  • DC Powered: 11-14 Vdc (see chart for current requirements)
  • Wall module (included): 120 VAC 60 Hz, 12 Vdc 500 mA, UL Listed
  • Warranty: Two Years Parts and Labor
