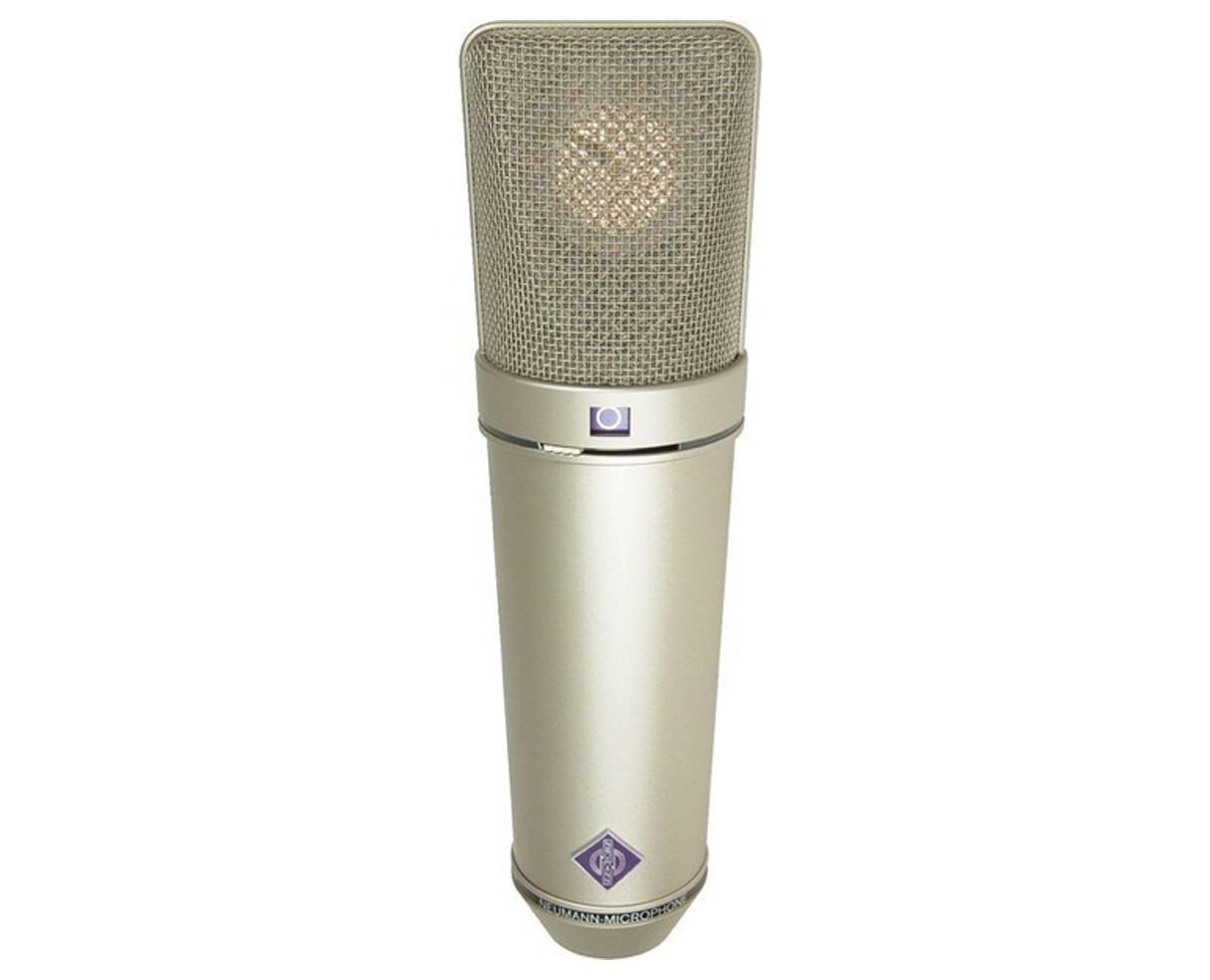

Neumann U 87 Ai Set Z
Multipattern Large Dual Diaphragm Condenser Microphone in Satin Nickel Finish with Wood Case, EA 87 Shock Mount, WS 87 Windscreen, & IC 3/25 Cable

OUR PART #:  U87AI/SET-Z/SILVER

Our Price: $3,599.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neumann U 87 Ai Set Z
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Includes:

  • U 87 Ai multipattern microphone
  • EA 87 shockmount
  • WS 87 windscreen
  • IC 3/25 cable
  • Wood box

U 87 Ai

Neumann's U 87 Ai presents a wide range of features and versatility that make it a highly desirable microphone.  Well-known for its warm and well balanced characteristics - the U 87 Ai is a great choice for a vocal microphone for all types of music and speech.  The U 87 Ai works well as a main microphone for orchestra recordings, or as spot mic for single instruments, making it the most general-purpose microphone - in studios, for broadcasting, film and television.

The U 87 Ai is equipped with a large dual-diaphragm capsule with three directional patterns: omnidirectional, cardioid and figure-8.  These are selectable with a switch below the headgrille.

A 10 dB attenuation switch is located on the rear.  It enables the microphone to handle sound pressure levels up to 127 dB without distortion.

Furthermore, the low frequency response can be reduced to compensate for proximity effect.

Applications

The U 87 Ai condenser microphone is a large diaphragm microphone with three polar patterns and a unique frequency and transient response characteristic.

Acoustic Features

The U 87 Ai is addressed from the front, marked with the Neumann logo.  The frequency response of the cardioid and figure-8 directional characteristics are very flat for frontal sound incidence, even in the upper frequency range.  The microphone can be used very close to a sound source without the sound becoming unnaturally harsh.  By means of a high-pass filter interferences through subsonic and low frequencies are reduced remarkably.

Polar Patterns

The dual-diaphragm capsule is elastically mounted and protected by a large headgrille.  A switch below the headgrille selects the three directional patterns: omnidirectional, cardioid and figure-8.  A window above this switch shows the symbol of the selected characteristic.

Electrical Features

The letter A in the name indicates a more recent generation, as compared to the U 87 i microphones that were built from 1967 to 1986.  Modifications apply to the electronic components of the microphone only; the capsule remained unchanged.

The present-day circuitry increases the operational headroom of the U 87 Ai by supplying the bias voltages for the capsule through a reduced resistance.  The result is a higher sensitivity of 10 dB for identical sound pressure levels, and an improved S/N ratio of 3 dB.

Filter and Attenuation

A switch located at the rear attenuates the sensitivity by 10 dB.  When this switch is activated, the microphone accepts sound pressure levels up to 127 dB (equivalent to a sound pressure of 45 Pa) without distortion.

An additional switch at the rear allows to change the microphone's cutoff frequency.  This reduces low frequency interference directly at the input of the microphone amplifier.

This setting also compensates for the unavoidable bass boost that occurs with all pressure gradient transducers when they are used at close distance (proximity effect).

The cardioid characteristic maintains a smooth frequency response at a distance of 30 to 40 cm, the figure-8 characteristic even at a distance of 15 to 20 cm.

Features:

  • Variable large diaphragm microphone
  • Pressure-gradient transducer with double membrane capsule
  • Three directional characteristics: omni, cardioid, figure-8
  • Switchable low frequency roll-off
  • Switchable 10 dB pre-attenuation
  • Ideal as main and as support microphone in the most differing recording situations

Specifications:

  • Acoustical Operating Principle: Pressure gradient transducer
  • Directional Pattern: Omnidirectional, cardioid, figure-8 plus
  • Frequency Range: 20 Hz ... 20 kHz
  • Sensitivity at 1 kHz into 1 kohm: 20/28/22 mV/Pa*
  • Rated Impedance: 200 ohms
  • Rated Load Impedance: 1000 ohms
  • Equivalent noise level, CCIR**: 26/23/25 dB*
  • Equivalent noise level, A-weighted**: 15/12/14 dB-A*
  • S/N ratio, CCIR** (rel. 94 dB SPL): 68/71/69 dB*
  • S/N ratio, A-weighted**(rel. 94 dB SPL): 79/82/80 dB*
    *Omnidirectional/cardioid/figure-8
    **According to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
  • Maximum SPL for THD 0.5%***: 117 dB (cardioid)
  • Maximum SPL for THD 0.5% with preattenuation***: 127 dB
    ***Measured as equivalent el. input signal
  • Maximum Output Voltage: 390 mV
  • Dynamic Range of the Microphone Amplifier (A-weighted): 105 dB
  • Supply Voltage: 48 V ┬▒ 4 V
  • Current Consumption: 0.8 mA
  • Matching Connectors: 3-pin XLR-F
  • Weight: 500 g
  • Diameter: 56 mm
  • Length: 200 mm
