Quam QC10CLASSIC Wall-Mount Attenuator 20W, Single-Gang, Printed Positions

OUR PART #: QC10CLASSIC

Copied to clipboard

The QC10 CLASSIC is a UL listed, single-gang, 20W, ten-step, continuous rotary, audio level attenuator with an OFF position. ...Read more

Quam QC10CLASSIC Wall-Mount Attenuator 20W, Single-Gang, Printed Positions Image 1
Quam QC10CLASSIC Wall-Mount Attenuator 20W, Single-Gang, Printed Positions
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

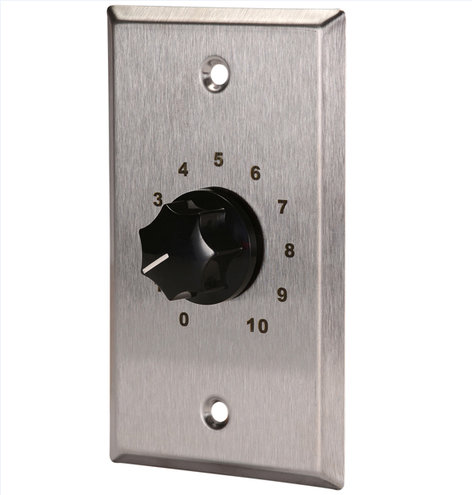

The QC10 CLASSIC is a UL listed, single-gang, 20W, ten-step, continuous rotary, audio level attenuator with an OFF position. Brushed, stainless steel faceplate with printed positions and a black knob with white indicator mark.

Quam QC10 series of attenuators are designed to provide local or remote level control of 25 or 70.7 volt distributed loudspeakers. These attenuators can be used to control a single speaker or groups of loudspeakers when the total speaker load is twenty watts or less. Each model provides ten standard steps of attenuation plus an “off” position. Model QC10 features a contemporary style, embossed position identification stainless steel trim plate. QC10 Classic is the traditional style, embossed, paint filled stainless steel trim plate.

All models in this series except QC10RM include screws to mount to standard single gang electrical boxes with a depth requirement of 2-1/8 inches. Model QC10RM is supplied with a 2” x 2” dial scale and a barrel extension nut to accommodate mounting to rack panels up to 1/8” thick.

Features:

  • Twenty watt continuous power rating
  • Protective bracketing guards against accidental damage to switch leadsduring installation
  • Durable, insulated, stranded switch leads prevent breakage and accidentalgrounds
  • Positive stop action switch
  • Two styles of stainless steel trim plate

Specifications:

  • Power Rating: 20 Watts continuous
  • Positions: 10, plus “0” (off position)
  • Attenuation Steps, Ref. 70.7 volt line: Steps 1-2 = -6dB, Steps 3-10 = -3dB
  • Total Attenuation: -36dB (Not including “0” position)
  • Insertion Loss: < .5dB
  • Wall Mounting Plate: Single gang brushed stainless steel
  • Recommended Wall Box: (Flush) Rayco #600 or equivalent, (Surface) Quam SE4W
  • QC10P Relay: Voltage 24VDC Current .015 Ampere
  • Control Knob: Black w/ White position indicator

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
