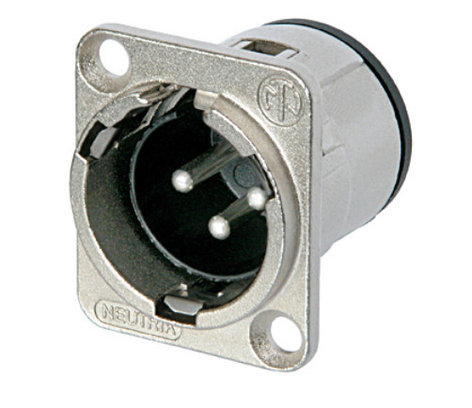

Neutrik NC3MD-V D Series 3-pin XLRM Chassis Connector with Vertical PCB Mount, Silver

The Neutrik NC3MD-V is a 3-pole male receptacle, vertical PCB mount, Nickel housing, silver contacts.

Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component.

Neutrik NC3MD-V Features:

• D-shape metal shell
• Optimal RF protection using 3 shield contacts.
• Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
• Front or rear panel mount

Neutrik NC3MD-V Specifications:

• Capacitance between contacts: = 4 pF
• Contact resistance: = 5 mOhm (inner)
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GOhm (initial)
• Rated current per contact: 6 A
• Rated voltage: 50 V
• Insertion force: = 20 N
• Withdrawal force: = 20 N
• Lifetime: > 1000 mating cycles
• Wiring: Vertical PCB mount
• Locking device: Latch lock
• Mounting direction: rear
• Chassis shape: D
• Contact plating: 2 µm Ag over 2 µm Ni
• Contacts: Brass (CuZn35Pb2)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Steel Ck67
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Approvals: UL
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
