West Penn 25224BGY BY FOOT 18AWG 2-Conductor Stranded Plenum Audio Cable, Flexible, Gray, Priced per Foot

OUR PART #: 25224B-BY-FOOT MFR #: 25224BGY BY FOOT

Copied to clipboard

18/2 Stranded bare copper conductors, unshielded with an overall jacket Indoor within ducts, plenums... ...Read more

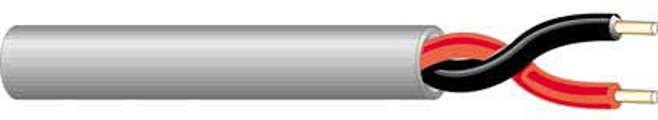

West Penn 25224BGY BY FOOT 18AWG 2-Conductor Stranded Plenum Audio Cable, Flexible, Gray, Priced Per Foot Image 1
West Penn 25224BGY BY FOOT 18AWG 2-Conductor Stranded Plenum Audio Cable, Flexible, Gray, Priced Per Foot
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

18/2 Stranded bare copper conductors, unshielded with an overall jacket

  • NEC RATING: CMP, NEC Article 800
  • APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed

Applications:

Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music)

Specifications:

  • Construction Parameters:
    • Conductor 18 AWG Bare Copper
    • Stranding 7x26
    • Insulation Material Flex Plenum PVC
    • Insulation Thickness 0.008'' Nom.
    • Number of Conductors 2
    • Shield None
    • Drain None
    • Jacket Material Flex Plenum PVC
    • Jacket Thickness 0.015'' Nom.
    • Overall Cable Diameter 0.154'' Nom.
    • Approximate Cable Weight 17 Lbs/1M' Nom.
    • Flame Rating NFPA 262 Flame Test
  • Electrical & Environmental Properties:
    • Temperature Rating -10°C To +60°C
    • Operating Voltage 300 V RMS
    • Max.Capacitance Between Conductors @ 1 KHz 30 pf/ft Nom.
    • DC Resistance per Conductor @ 20°C 6.2 Ohms/1M' Nom.
    • Insulation Colors Black, Red
    • Jacket Color Gray, Black, Brown, Orange, Green
    • White, Yellow
    • RoHS Compliant Yes
  • Mechanical Properties:
    • Max. Recommended Pull Tension 42 lbs
    • Min. Bend Radius (Install) 1.4”
