AKG MB3
Mini-Boundary Microphone, Half-Supercardioid

OUR PART #:  MB3

The MB3 is a miniature boundary microphone for multi-miking applications such as teleconferencing, distance learning, boardrooms, courtrooms, and security applications.
Learn More
Our Price: $199.00
List Price: $249.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

AKG MB3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

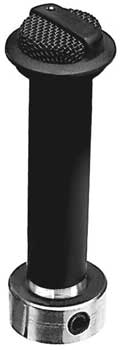

The MB3 is a miniature boundary microphone for multi-miking applications such as teleconferencing, distance learning, boardrooms, courtrooms, and security applications. This low-profile, circular mic permanently installs into a hole drilled in a table, lectern, or ceiling.

Thanks to its supercardioid pickup pattern, the MB3 greatly reduces ambient noise and pickup of room reverberation. The result is a clearer, more intelligible sound.

On the bottom of the mic is a tubular power module with a 3-pin XLR-type output connector. It is powered by 12-48V phantom power, and has a low-impedance balanced mic-level output.

AKG MB3 Features:

  • Ideal for teleconferencing, distance learning, boardrooms, courtrooms and security
  • Small and inconspicuous
  • Installs permanently in a table top, wall or ceiling
  • Half-supercardioid polar pattern reduces pickup of background noise, room acoustics and feedback
  • On-surface mounting eliminates phase interference from table sound reflections, giving a natural sound

AKG MB3 Specifications:

  • Element: Electret condenser
  • Frequency Response (typical): 50 Hz to 15 kHz at 30┬░ incidence to surface
  • Polar Pattern: Half-supercardioid (supercardioid in the hemisphere above the primary boundary)
  • Impedance: 150 ohms balanced
  • Recommended Load Impedance: 1000 ohms
  • Open-circuit sensitivity: 22 mV/Pa (-33 dB re 1V/Pa)
  • Power Sensitivity: -30.5 dB re 1 mW/Pa; EIA rating -125dBm
  • Equivalent noise level (self-noise): 22 dB SPL typical,A-weighted
  • S/N Ratio: 72 dB at 94 dB SPL
  • Max SPL for 3% THD: 120 dB
  • Operating Voltage: 12 to 48V DC phantom power, positive on pins 2 and 3 with respect to pin 1 output connector
  • Output connector: 3-pin pro audio, XLR-M type
  • Cable: None supplied. Use two-conductor shielded miccable
  • Current Drain: 4 mA nominal
  • Materials: High-impact molded plastic and steel mesh mic grille, steel chassis
  • Finish: Satin black
  • Dimensions (Height x Max Diameter): 3.324" x .974"
  • Weight: 2.7 oz
