Quam SYSTEM-1
Surface Mount Speaker Assembly

OUR PART #  SYSTEM-1-QUAM

Our Price: $57.37
List Price: $83.62
You save 31%! (Low Price Guarantee)
In Stock

Recommended Accessories

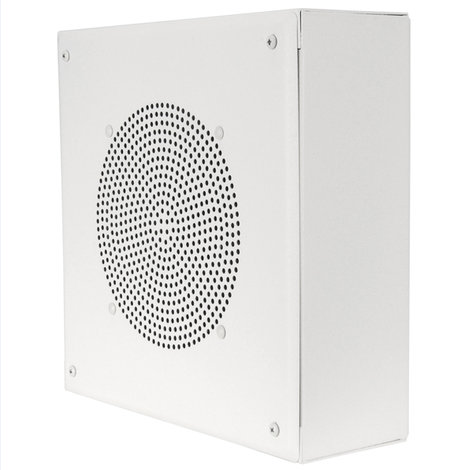

The Quam SYSTEM 1 is a complete loudspeaker system consisting of an 8C5PAX-8" O.D. dual cone loudspeaker with a 5 oz. magnet and a TBLU - 5W 25/70V transformer mounted on a BS8W - square, screw mount, steel baffle with a SE1WVP - square, steel, vandal resistant, surface mount enclosure wiht (4) 8-32 threaded inserts, a single 1/2" conduit entrance on the back and (2) Wiremold knockouts.

The Quam System 1 and System 2 are designed for areas that require a surface mounted speaker system. Typical usage includes schools and industrial applications. The assemblies easily mount to rafters, walls or posts. Both units feature all steel folded and welded construction. The integral full range speaker provides excellent reproduction of paging and background music. Both systems are finished in durable baked white powder epoxy.

Quam System 1 Features:

  • All-steel construction
  • Durable white baked epoxy finish
  • Simple installation

Quam System 1 Specifications:

  • Speaker: 8C5PAX
  • Type: 8” P.C.
  • Freq. Response: 65Hz-17kHz
  • Power Rating: 8 Watts
  • Sensitivity: 98 dB SPL (1w/1m)
  • Magnet Size: 4.8 oz.
  • Voice Coil: 8 Ohm
  • Cone Type: Treated Paper
  • Transformer: TBLU
  • Power Rating: 5 Watts
  • Primary Volt: 25/70
  • Primary Taps: 5/16, 5/8, 1-1/4, 2-1/2, 5 Watts
  • Terminations: (9) 6” leads, color coded
  • Grill: BS8W
  • Finish: Baked White Powder Epoxy
  • Material: 22-gauge Steel
  • Enclosure: SE1WVP
  • Material: .060” Cold Rolled Steel
  • Finish: Baked White Powder Epoxy
  • Mounting Holes: 10” square
  • Face: Flat
  • Weight: 9 lbs.
Square Ceiling Baffle, Screw MountQuam BS8W Square Ceiling Baffle, Screw Mount

The Quam BS8W is a 22 gauge steel, square speaker baffle with 4 supplied “white-head” 8-32 x 1” Phillips truss head mounting screws through the baffle. Finish: White baked epoxy hybrid.Intended UseIndoor environment. For use with ...

In Stock

Our Price:$6.50List Price: $9.50You save 32%!

Square Surface Mount Enclosure, Stainless SteelQuam ES-8S Square Surface Mount Enclosure, Stainless Steel

Quam's ES-8S is a 3.75" deep, 430 CID, square flush mount stainless steel back box with an acoustic foam liner. Well suited for indoor or protected outdoor use, this recessed mount enclosure is compatible with Quam 8" square loudspeaker ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$68.13List Price: $95.88You save 29%!

Vandal Resistant Square Surface-Mount Speaker EnclosureQuam SE1WVP Vandal Resistant Square Surface-Mount Speaker Enclosure

Quam's SE1WVP is a surface-mount back box. 16-guage steel, white baked epoxy hybrid finish. Use with BS8VP baffle.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$31.40List Price: $48.90You save 36%!

8" Speaker with 25/70v TransformerQuam 8C5PAX/TBLU 8" Speaker with 25/70v Transformer

This loudspeaker meets the needs of a broad range of commercial background music reproduction systems. A hard fiber “whizzer” cone provides extended high frequency response with fine clarity, while the molded fiber moisture resistant ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$29.87

Buy 12 @ $17.92 ea.
Buy 24 @ $16.73 ea.
Buy 36 @ $15.54 ea.
