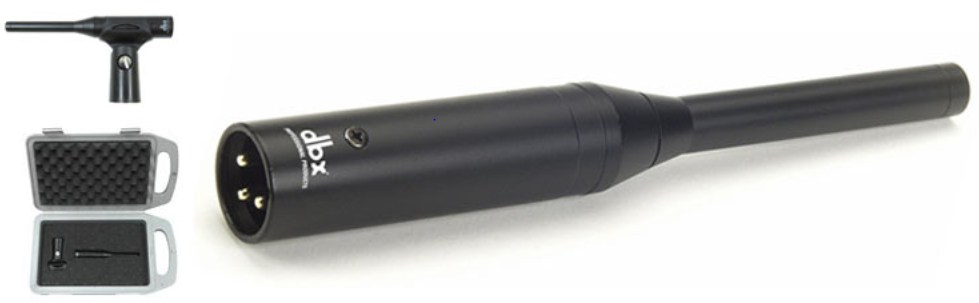

DBX RTA-M
Real-Time Analyzer Microphone for dbx DriveRack

OUR PART #:  RTA-M

The dbx RTA-M real time audio analyzing mic is the perfect accessory tool for the DriveRack PA series (PA, PX, PA+, PA2) and 260.
Learn More
Our Price: $99.95
List Price: $124.00
You save 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DBX RTA-M
Qty:
In Stock

Similar Products

The dbx RTA-M real time audio analyzing mic is the perfect accessory tool for the DriveRack PA series (PA, PX, PA+, PA2) and 260. Used in conjunction with the System Setup Wizard and Auto EQ Wizard the RTA-M is ideal for optimizing the sound quality of even the most difficult of acoustic environments.

The RTA-M is an omni-directional, flat frequency measurement microphone specially designed for the Driverack series to pick up all frequencies from 20 Hz to 20 kHz , ensuring accurate "pinking"/real-time analysis of your audio. It runs on phantom power (supplied by the Driverack units) and comes with a clip and case.

dbx RTA-M Features:

  • Element: Back electret-Condenser
  • Frequency Response: 20 Hz - 20 kHz
  • Operating Voltage: Phantom power 9V-52VDC

dbx RTA-M Specifications:

  • Element: Back Electret Condenser
  • Polar Pattern: Omnidirectional
  • Frequency Range: 20 Hz ~ 20,000Hz
  • Impedance: 250 O ± 30% (@ 1KHz)
  • Operating Voltage: 9~52V DC Phantom Power
  • Sensitivity: -63 dB ± 3 dB (0 dB=1V/microbar 1,000 Hz indicated by open circuit)
  • Dimensions: Ø10(mic head) x 145(L) mm
