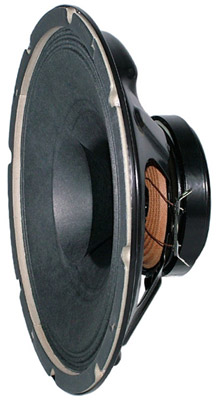

Quam 8C10PAX/TBL70
8" Loudspeaker w/ 70V Transformer

OUR PART #  8C10PAX/TBL70B

Our Price: $32.44
Buy 12 @ $19.46 ea.
Buy 24 @ $18.16 ea.
Buy 36 @ $16.87 ea.
(Low Price Guarantee)
In Stock

Recommended Accessories

This loudspeaker provides excellent performance and value for commercial background music, foreground music and distributed public address applications. It comes factory-assembled with a 70-volt transformer (TBL70).

Features:

  • Metal parts are coated with baked hybrid epoxy for durability.
  • Conservative power rating at published industry standard (EIA 426A)
  • Pre-mounted transformer

Specifications:

  • Speaker Size: 8"
  • Power Rating: 18 Watts RMS (EIA 426A standard)
  • Frequency Response: 60 Hz - 16 kHz
  • Resonant Frequency: 90 Hz
  • Nominal Impedance: 8 Ohms
  • Magnet Type and Weight: Barrium Ferrite Ceramic: 26 kg
  • Flux Density: 10,500 Gauss
  • Average Sensitivity (1w/1m): 97 dB SPL
  • Dispersion, -6 dB Down Pt. (Half Space @ 2 KHZ): 50 Degrees off axis
  • Depth (Less Transformer): 3"
8" Stainless Steel, Stud Mount, Vandal Resistant Square BaffleQuam BS8VPS 8" Stainless Steel, Stud Mount, Vandal Resistant Square Baffle

Quam's BS8VPS is a square, stud mount, vandal resistant stainless steel baffle for 8" O.D. loudspeakers in a white powder coat finish. The baffle features 8-32 x 1" welded studs on the back surface, and is supplied with a steel interwoven ...

In Stock

Our Price:$44.96List Price: $61.16You save 26%!

Quam 8C10PAX/TBL70
8" Loudspeaker w/ 70V Transformer

OUR PART #  8C10PAX/TBL70B

Product Information:

This loudspeaker provides excellent performance and value for commercial background music, foreground music and distributed public address applications. It comes factory-assembled with a 70-volt transformer (TBL70).

Features:

  • Metal parts are coated with baked hybrid epoxy for durability.
  • Conservative power rating at published industry standard (EIA 426A)
  • Pre-mounted transformer

Specifications:

  • Speaker Size: 8"
  • Power Rating: 18 Watts RMS (EIA 426A standard)
  • Frequency Response: 60 Hz - 16 kHz
  • Resonant Frequency: 90 Hz
  • Nominal Impedance: 8 Ohms
  • Magnet Type and Weight: Barrium Ferrite Ceramic: 26 kg
  • Flux Density: 10,500 Gauss
  • Average Sensitivity (1w/1m): 97 dB SPL
  • Dispersion, -6 dB Down Pt. (Half Space @ 2 KHZ): 50 Degrees off axis
  • Depth (Less Transformer): 3"
8" Stainless Steel, Stud Mount, Vandal Resistant Square BaffleQuam BS8VPS 8" Stainless Steel, Stud Mount, Vandal Resistant Square Baffle

Quam's BS8VPS is a square, stud mount, vandal resistant stainless steel baffle for 8" O.D. loudspeakers in a white powder coat finish. The baffle features 8-32 x 1" welded studs on the back surface, and is supplied with a steel interwoven ...

In Stock

Our Price:$44.96List Price: $61.16You save 26%!
