Quam 8C10FECO
8" Coaxial Foreground Loudspeaker


Our Price: $30.34
List Price: $38.70
Save up to 36% when you order by quantity!
Buy 8 @ $28.45 ea.
Buy 16 @ $26.55 ea.
Buy 24 @ $24.65 ea.
(Low Price Guarantee)
In Stock

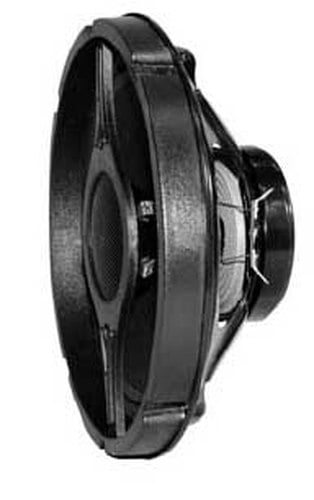

The Quam 8C10FECO is an 8” frame, 8 Ohm loudspeaker with foam surround and coaxial mount piezoelectric high frequency element. Finish: Black baked epoxy hybrid.

Intended Use
Wide frequency response replacement loudspeaker or combined with recommended Quam components to form a complete loudspeaker system; indoor environment

Program Material
Signal tones, voice and music


  • Speaker Size: 8” Frame
  • Average Sensitivity: 95 dB SPL, 1W / 1M
  • Power Rating: 20W RMS, EIA 426A Standard
  • Calculated Output: 110 dB SPL, 20W / 1M
  • Frequency Response: 40 Hz - 20 kHz EIA 426A Standard
  • Nominal Coverage Angle: 90° Included Angle, -6 dB / 2 kHz, Half Space
  • Mounting: 4x 1/4” Holes Spaced 90° Apart on 7-5/8” Circle
  • Audio Connection: 0.205” Spade Lug
