Altman Luminator
Quartz Halogen Follow Spot with Stand and Front-End Accessory Holder

OUR PART #:  LUMINATOR

The Altman Luminator is a ruggedly constructed short- to medium-throw follow spot that produces a narrow...
Learn More
Our Price: $1,224.80
List Price: $1,531.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Altman Luminator
Qty:
In Stock

Similar Products

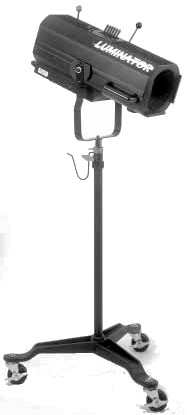

The Altman Luminator is a ruggedly constructed short- to medium-throw follow spot that produces a narrow, hard- or soft-edged beam which zooms from 1.3 degrees to 9.3 degrees. With top-mounted iris, color boom, and dimmer control handles, this easy-to-use follow spot is designed to utilize high-performance FLE, ENX and FXL quartz-halogen lamps. The Luminator can be used in any application where manual control of a lighting beam is required to follow a performer and to vary beam size, quality and color.

Altman Luminator Follow Spot Features:

  • Extruded anddie-cast aluminum construction
  • Rugged, compact, and lightweight
  • Topoperated color boom, iris and dimmer controls
  • Six color boomerang
  • Dual adjustable lenses
  • Positivelocking pan and tilt adjustment
  • Adjustablecastered stand with cable hook included
  • High-performance lamp included
  • Front end accessory holder provided
  • U.L.,c.U.L. and CE listed for 410 watts
  • Made in the U.S.A.

Altman Luminator Follow Spot Specifications:

  • Housing: Extruded and die-cast aluminum construction.
  • Materials: Corrosion-resistant materials and hardware.
  • Yoke: 1/8" flat steel with dual locking-dog tilt handles.
  • Lenses:
    • Front lens: 6x12 plano convex.
    • Rear lens: 3.5x8 plano convex.
  • Socket: Miniature 2-pin G5.3; lamp ejector lever provided; tool-free relamping.
  • Rating: 120 VAC input, 4.0 amps max.
  • Power Switch: 120 VAC 16-amp illuminated rocker switch.
  • Cooling: Forced-air via single low-noise fan provided with finger guard.
  • Transformer: 410VA magnetic, Class B, 82-volt secondary.
  • Cable: 11.5 ft. 18/3 STW provided with male edison plug.
  • Access Door: Hinged; provides access to lamp for replacement.
  • Lamp: 410 watts maximum, 82 volt MR-16 type.
  • Focusing: Dual zoom lens carriers travel on Teflon® and nylon glide bearings along extruded aluminum channels, each lens carrier provided with lock knob.
  • Iris: 18-leaf, high-grade stainless steel.Top-operated with heat-resistant knob.
  • Color Changer: 6-frame self-canceling color boom allowing single or multiple color insertion into beam path. Tool-free removal.
  • Dimmer/Douser: Mechanical, heat-resistant three-leaf type. Top-operated with heat-resistant knob.
  • Stand: Three-legged, height adjustable (to 12" maximum), with locking casters. Height-adjustment lock allows for 360° continuous pan. Cable hook also included.
  • Accessories: Accepts standard 7-1/2" accessories in front-end accessory holder.
  • Finish: Black epoxy Sandtex, electrostatic application.
  • Weight:
    • Approx. 28 lbs. (12.6 kg) for lamp house and yoke
    • Approx. 28-3/4 lbs. (12.8 kg) for stand (base, yoke, and support column).
    • Total net weight approx. 56-3/4 lbs. (25.5 kg)
MR-16 Lamp, 360W, ANSI FLE, 82V, 75 Hz
Altman 90-FLE MR-16 Lamp, 360W, ANSI FLE, 82V, 75 Hz
This unit is a 360W, 82V Halogen MR-16 Projector Lamp with Dichroic Reflector and GY5.3 Bipin Base. For use with the Luminator and Comet followspots.Altman 90-FLE Specifications: Diameter: 2"Length: 1.78"
22.40 28.00 20

Usually ships in 7-14 business days.
