Earthworks M30mp
Matched Pair of Omnidirectional High Definition Measurement Microphones

OUR PART #:  M30-MATCHED-PAIR

The M Series has become the accepted standard for affordable, reliable reference and measurement microphones that are accurate in the time domain and frequency response.
Learn More
Our Price: $1,499.00
List Price: $1,874.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Earthworks M30mp
Qty:
In Stock

Similar Products

The M Series has become the accepted standard for affordable, reliable reference and measurement microphones that are accurate in the time domain and frequency response. They are remarkably stable with respect to temperature and atmospheric conditions and are optimized for clean, very fast impulse performance providing accurate wideband response with virtually no handling noise.

Earthworks M30mp Features:

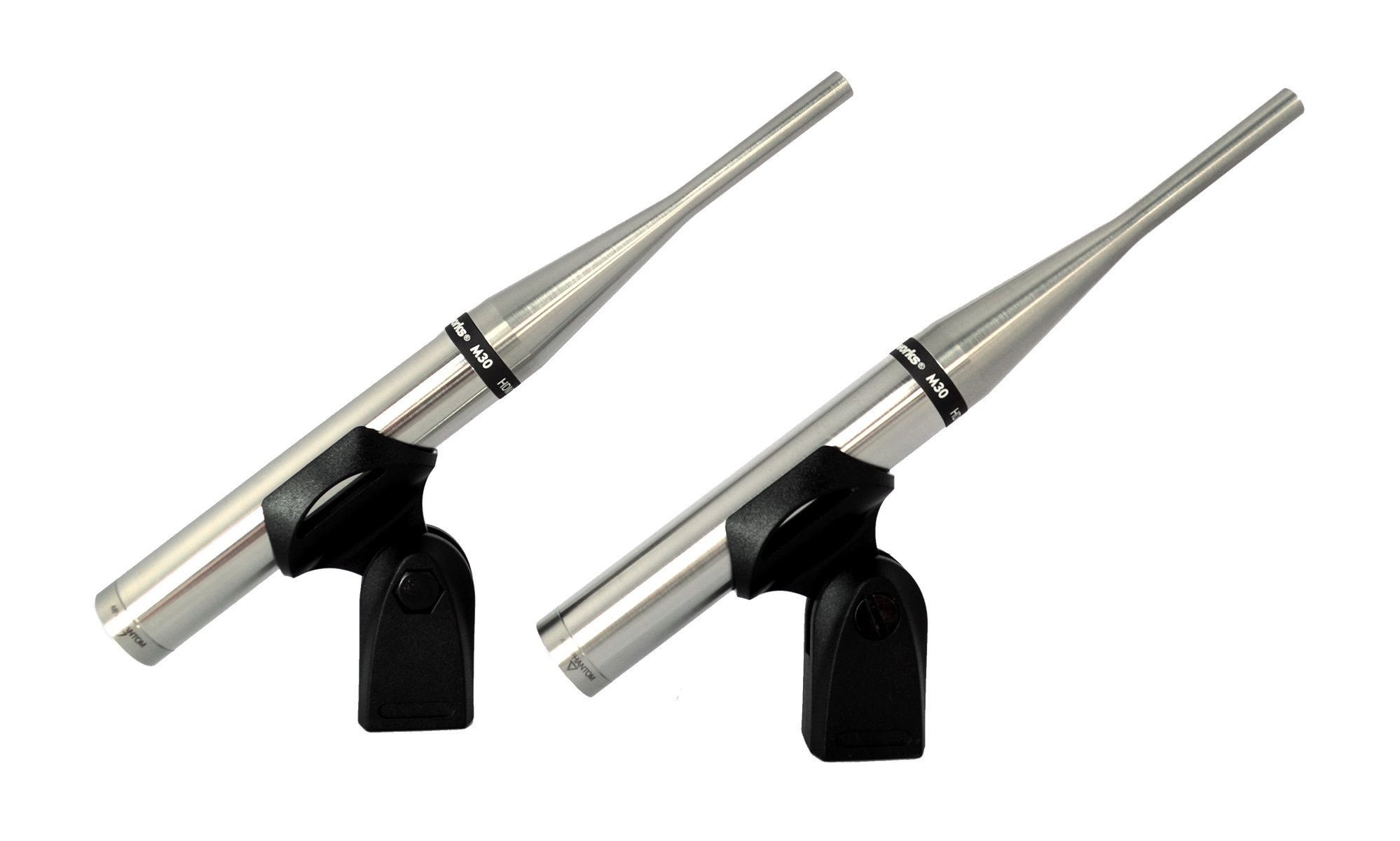

  • Matched pair of Earthworks M30 microphones with wooden storage case
  • Ideally suited for acoustical measurements including loudspeaker design and quality control, sound system setup and troubleshooting, room acoustics, or any application where an accurate free-field measurement microphone is required
  • Improved version of the SMAARTMIC™ previously offered by Earthworks
  • Omnidirectional polar pattern
  • Flat frequency response, fast impulse response and exceptional polar characteristics
  • Used by SMAART™, MLSSA™, Spectrafoo™, TEF™ and RTA in addition to acoustic measurement systems manufactured by dbx, DEQX and others
  • Each M Series microphone is delivered with its own calibration chart providing its individually measured open-circuit sensitivity and the frequency response curve
  • Electronic Calibration File available

Earthworks M30mp Specifications:

  • Frequency Response:  5 Hz - 30 kHz ±1/-3dB
  • Polar Pattern:  Omnidirectional
  • Sensitivity:  30mV/Pa (-30.5dBV/Pa)
  • Power Requirements:  48V Phantom, 10mA
  • Max Acoustic Input:  142dB SPL
  • Output:  XLR (pin 2+)
  • Output Impedance:  100 Ohms, balanced (50 Ohms ea. pin 2 & 3)
  • Min Output Load:  600 Ohms between pins 2 & 3
  • Noise:  22dB SPL equivalent (A weighted)
  • Meets or exceeds ANSI Type 1 and applicable IEC 61094 requirements
  • Operating Temp Range:  14 deg. F to 104 deg. F (-10 deg C to +40 deg C)
  • Storage Temp Range:  -4 deg. F to 122 deg. F (-20 deg C to +50 deg C)
  • Dimensions L x D:  9" x 0.860" (229mm x 22mm)
  • Weight:  0.5 lb. (225g)
